G-SERIES W5
Have one to sell?
ConditionNew
New

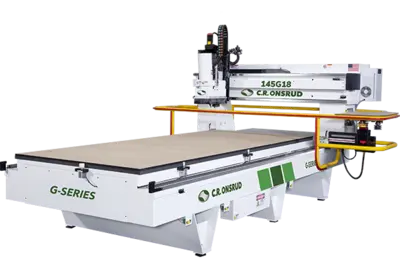

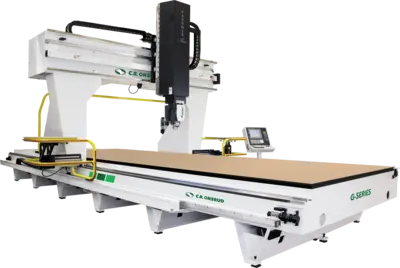

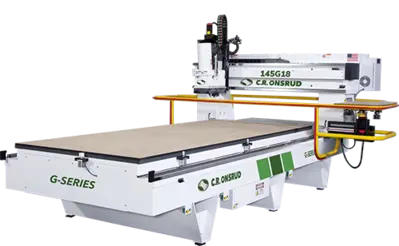

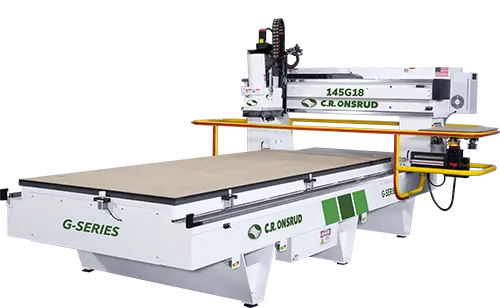

The C.R. Onsrud G-Series is an industrial 3-Axis CNC moving gantry machine equipped for large, high-volume, continuous panel and sheet processing and nested operations. It easily handles full sheets of plywood, solid wood, laminates, aluminum plate, and plastics at rapid feed rates while operating under continuous duty conditions. The flexibility, production capabilities, and lower price point of the G-Series yield a large table-size-to-cost ratio for an exceptional R.O.I.
Customize the G-Series with accessories. Here you’ll find ways to increase your productivity by adding a 4th axis to a 3-axis machine; select your tool lubrication; eliminate measuring errors with automatic tool measurement systems; and more.
With a C-Axis (aka 4th axis), you can machine at an angle, including on the sides of your material, to create complex contours (such as helixes), otherwise not possible with a 3-axis machine. This comes standard on a 5-axis machine.
Bursts of air keep tools cool and remove debris and chips from the cut without the need for coolant.
Primarily used for metals, Minimum Quantity Lubrication (MQL) dispenses only the amount of lubricant needed for your specific operation to keep tools cool and improve cut quality.
Directional air blast blows air on the tooltip to aid in removing debris and cool tools. The direction of air changes relative to the path of the machine. It can be turned on/off via M-Code.
11" Z: 145G / 193G / 241G / 289G / 333G / 420G
Table Size: X: 145 / 192.5 / 242 / 289 / 334 / 428
Table Size: Y: 61
Machine Size: L: 239 / 287 / 335 / 383 / 431 / 527
Machine Size: W: 136
Machine Size: H: 103
Vacuum Zones (standard #): 3 / 4 / 5 / 8 / 7 / 9
18" Z: 145G / 193G / 241G / 289G / 333G / 420G
Table Size: X: 145 / 192.5 / 242 / 289 / 334 / 428
Table Size: Y: 61
Machine Size: L: 235 / 283 / 331 / 379 / 427 / 523
Machine Size: W: 136
Machine Size: H: 140
Vacuum Zones (standard #): 3 / 4 / 5 / 8 / 7 / 9
28" Z: 121G / 169G / 217G / 265G / 312G / 408G
Table Size: X: 121 / 169 / 217 / 265 / 312 / 408
Table Size: Y: 61
Machine Size: L: 227 / 275 / 323 / 371 / 419 / 515
Machine Size: W: 142
Machine Size: H: 155
Vacuum Zones (standard #): 3 / 4 / 5 / 6 / 7 / 9
40" Z:
Table Size: X:
Table Size: Y:
Machine Size: L:
Machine Size: W:
Machine Size: H:
Vacuum Zones (standard #):
Available Options & Accessories:
• AIR BLAST
• MQL
• DIRECTIONAL AIR BLAST
• ATLM SYSTEM (METROL)
• ATLM SYSTEM: TS27R (RENISHAW)
• ATLM: NC4 (RENISHAW)
• AUTOMATIC GREASE LUBRICATION
• GREASE DRIP PANS
• VOLUMETRIC LASER COMPENSATION
• DUST HOOD
• SERVO HOOD™
• DUST STANCHION KIT
• FLOATING DUCT
• DUST TROUGH
• OVERHEAD OFFLOAD DUST HOOD
• AIR KNIFE
• GANTRY BAR CURTAIN
• GANTRY SHROUD
• GANTRY ENCLOSURE
• LASER SAFETY SCANNER
• SENSING MATS
• REAR GANTRY INFEED (SUCTION)
• STATIC PRE-STAGE TABLE WITH OR WITHOUT PUSHER
• SCISSOR LIFT (HALF BUNK LOADER)
• SCISSOR LIFT (FULL BUNK LOADER)
• PUSHER SWEEPER
• STATIC OUTFEED
• CONVEYOR OUTFEED
• PRE-LABELING SYSTEM
• PART MARKING - INK
• PART MARKING - PAINT
• STANDALONE LABEL PRINTER
• BARCODE SCANNER
• ROBOTICS INTEGRATION
• 4 SPINDLE DRILL BLOCK
• 9 SPINDLE DRILL BLOCK
• 13 SPINDLE DRILL BLOCK
• 14 SPINDLE DRILL BLOCK
• 18 SPINDLE DRILL BLOCK
• 24 SPINDLE DRILL BLOCK
• AGGREGATE RING
• 90° HEAD
• DUO 90° HEAD
• QUAD 90° HEAD
• ADJUSTABLE ANGLE
• FLEX ANGLE
• MOULDER HEAD
• OSCILLATING KNIFE
• SMALL DIAMETER SAW BLADE
(up to 6″)
• DEDICATED AGGREGATE STATION
• CUSTOM VACUUM ZONES
• ONSRUD MATRIX GRID TABLE
• CUSTOM / MECHANICAL FIXTURING TABLE
• T-SLOT
• POD & RAIL
• LATHE (ROTARY)
• ROLLER HOLD-DOWN
• REFERENCE (POP-UP) PINS
• SURFACE PROBE
• PROBING
(RENISHAW PROBE)
• LASER PATTERN PROJECTION SYSTEM
• VISION RECOGNITION (FIDUCIAL)
• PENDULUM MODE
TABLE READY & RESUME BUTTONS
• C-AXIS
