EX-SERIES 140EX

Description

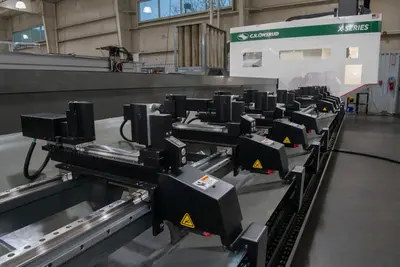

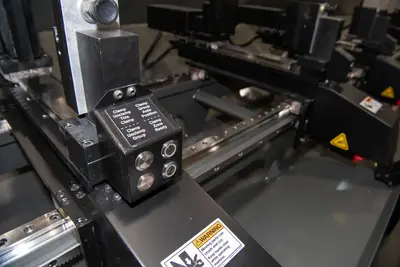

The EX-Series is a 5-Axis machining center for processing a high-mix of heavy and complex linear profile extrusions in aluminum, composite, and other advanced materials. It comes with a fully CNC programmable, servo-powered, quick-change clamping system that incorporates part separation and indexing. The 5-Axis capability combined with the automated clamping system provides effective hold-down, even for warped extrusions or pultrusions, as well as provides up to 6-sided access to your workpiece without having to reposition your material — delivering precision angles, undercuts, and surface finishes at high speed. For lighter duty applications, see the X-Series.

Customize the X-Series with accessories. Here you’ll find selections beneficial to your specific application and ways to eliminate measuring errors with automatic tool measurement systems.

With a C-Axis (aka 4th axis), you can machine at an angle, including on the sides of your material, to create complex contours (such as helixes), otherwise not possible with a 3-axis machine. This comes standard on a 5-axis machine.

Bursts of air keep tools cool and remove debris and chips from the cut without the need for coolant.

Precisely measures the length of your tool and automatically feeds that value into your CNC machine controls.

Automatically greases your tools, bearings, and ball screws at regular intervals.
