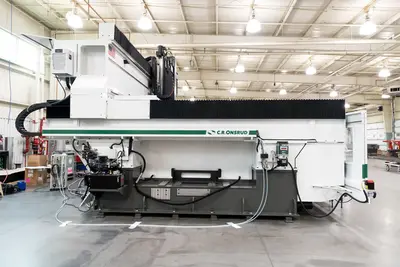

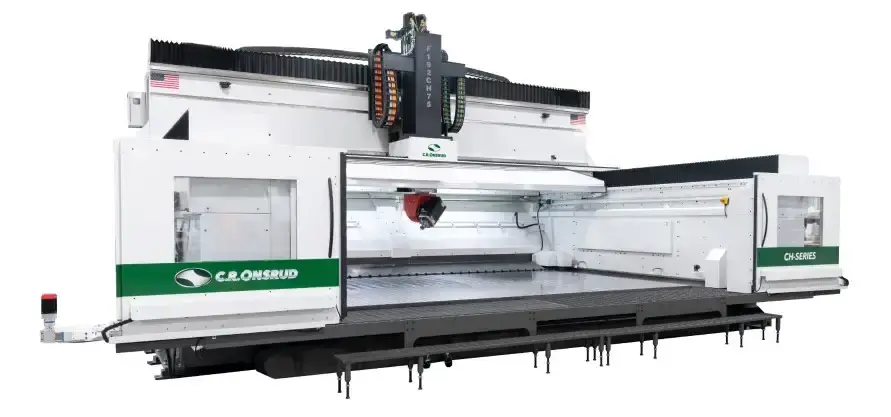

CH-SERIES F148CH

Description

The Compact High-Rail (HR) Series CNC machining center is a fully enclosed CNC machining center designed to handle the extreme weights of large nonferrous or light ferrous metals, or advanced composites block and plate. Dual ball-screw drive mechanisms deliver smooth, fast, precision cuts and backlash-free motion. The stiff Z-ram minimizes potential spindle twist and deflection, maintaining cut accuracy at tall working heights. With its large cutting envelope, load capacity, high accuracy, and aggressive speeds, this machine serves the most demanding applications.

The LR-Series 5-Axis machine is a highly customizable machine. If you don’t find the accessories you need, please contact us to discuss your machining requirements and business goals.

With a C-Axis (aka 4th axis), you can machine at an angle, including on the sides of your material, to create complex contours (such as helixes), otherwise not possible with a 3-axis machine. This comes standard on a 5-axis machine.

With continuous C-Axis, a 5-axis machine gets unrestricted rotational movement of the C-axis. Without this option, a traditional 5-axis spindle has to unwind itself after a set amount of rotation.

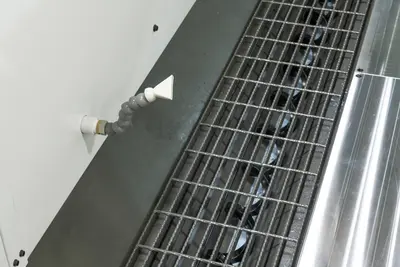

Bursts of air keep tools cool and remove debris and chips from the cut without the need for coolant.

Flood coolant absorbs the heat from high-intensity milling and removes the debris from your workpiece.
