New BELOTTI TRIM WJ / FLA WJ / MDL WJ | Waterjet Cutters

Description

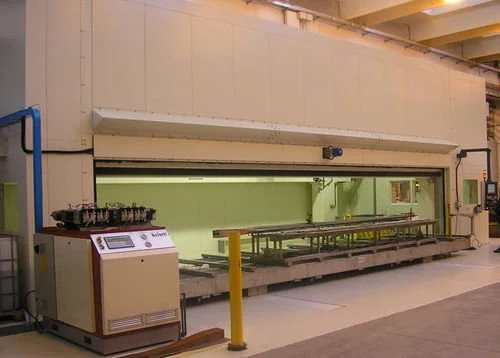

Belotti presents TRIM WJ/FLA WJ/CB 2 machining centers. The large-sized systems have been designed for abrasive and pure-water applications with 5 axis. These are widely used in aeronautical, automotive and mechanical applications. It is possible to customize the FLA, TRIM and CB2 machining centers using carousel loading/unloading systems.

These systems offer increased productivity and highest operator safety in both versions - Cartesian as well as anthropomorphic robot. They have a Cartesian design with a suspended bridge. Brushless motors that are coupled to precision gears are used for movements of axes. X-axis stroke is 1,600 mm at 80 m/min, Y-axis stroke is 1,200 mm at 80 m/min, Z-axis stroke is 700 mm at 60 m/min, A-axis stroke is 275 mm at 30 m/min, and C-axis stroke is 380 mm at 40 m/min.

The 1612 version is ideal for machining of small objects. And it assures of best performance in a limited space thanks to its compact design, bridge structure and the digital cn. The mkn version features a water jet cutting head.
