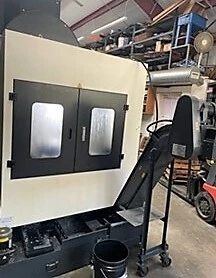

Mighty VIPER LRZ-1000AD with Fanuc0iMT

Working Table 45.28" x 20.47" (1,150 x 520 mm)
T-Slot (Width x Number x Pitch) 0.708" x 5 x 3.93"
(18 mm x 5 x 100 mm)
Maximum Table Load 1,320 lbs (600 kg)
Travels X-40.15" , Y-20.47" , Z-25.2"
(1,020 mm x 520 mm x 640 mm)
Distance – Spindle End To Table: 3.93”-29.13"
(100 mm to 740 mm)
Distance – Spindle Center To Column 22.83" (580 mm)
Spindle Type Direct Coupled
Spindle Speed 12,000 rpm
Spindle Nose Taper #ISO 40
Cutting Feedrate 0.34 - 196.8 IPM
Rapid Traverse(X, Y, Z) 1,890 IPM
Automatic Tool Changer Type Arm Type
Tool Storage Capacity 24
Maximum Tool Weight 33 Lbs
Tool Selection Random
Tool Shank CAT40
Pull Stud Bolt P40T-1
Spindle Drive Motor 15 Hp
