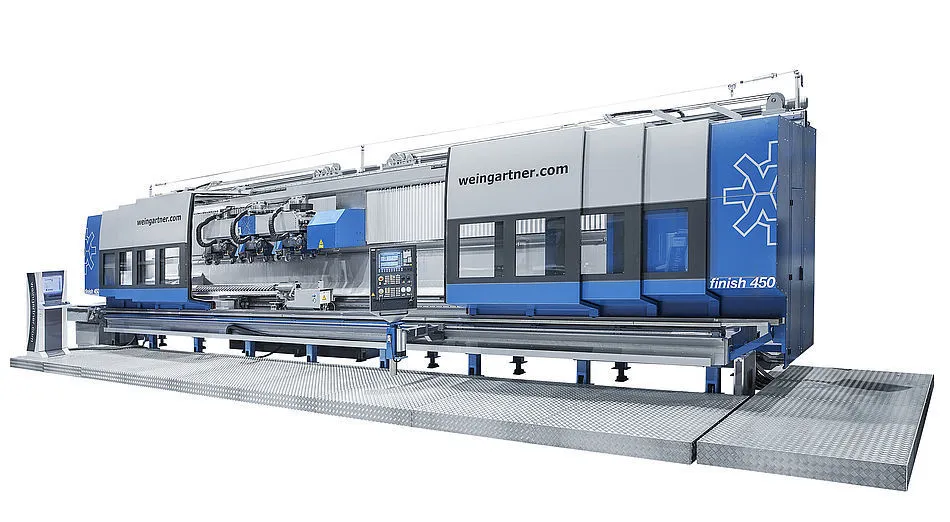

Finish polishing & grinding machine
Have one to sell?
ConditionNew
New
Polished profitability.
What are the benefits of using a grinding and polishing machine? Quite simply, it accelerates and completes the second rotor, stator and screw machining phase. This know-how package combines multifunctional polishing units with the weinCAD® module for polishing, spiral grinding and measurement.
Profiling and optimising.
One feature for genuine plastics industry success is the equipping of the machine with a grinding and polishing unit. Special devices for the application of the polish paste to screws provide exceptional quality, while the solid material disk profiles the geometry of the workpieces to perfection using its own take-off fixture. Moreover, the disk facilitates the highly cost-efficient grinding of edges and radii.
All in all, this adds up to saved time, money and nerves.
Single. Treble.
Shorter cycle times and competitive advantages is the motto and for the oilfield industry, the special development of the treble grinding unit represents a genuine USP, as it reduces time, energy and financial expenditure. The uniform geometries of the Moineau rotors and stator cores make this special application highly attractive to oilfield companies and therefore particularly successful.
Contactless measurement is a perfect addition.
The tailor-made package for the oilfield industry can be supplemented by a measurement device, which provides the tactile and contactless measurement of Moineau components. The results are then integrated into the machine process and linked bi-directionally using weinCAD®. The polishing of bolts and Moineau design parts takes place using a grinding belt and contact or fan disk in a multifunctional polishing unit (buffing).
Workpiece dimensions
max. diameter 340 mm 13,39 inch
min. diameter 25 mm 0,98 inch
length (between centers) 1 to 11 mm 3,2 to 35 ft
max. weight between centers 2.000 kg 4400 lb
total weight by means of
workpiece support 3.500 kg 7700lb
Control
NUM Flexium / Siemens 840D-SL
with external remote stations
resolution of linear axis 1 µm 0,04 thou
resolution of rotary axis 0,001 ° 0,001 °
Grinding- and Polishing Units
Single Band Grinding and Polishing Unit
Type PBSE-G-300/100
incl. AC-main spindle motor with pneumatically
controlled band tensioning system pressure-
Main data
transmissible power (at 3000 r.p.m.) 10,6 kW 10,6 kW
grinding speed 40 m/s 131,20 ft/sec
swivelling range (A-Axis) ´+88/-70 ° ´+88/-70 °
Grinding belt
width, max. 10-100 mm 0,4-4 inch
max. belt length incl. 5% belt lengthening 3.000 mm 118,11 inch
Contact wheel
tool diameter, max. 300 mm 11,81 inch
contact wheel width 100 mm 3,94 inch
flapping wheel width 70 mm 2,76 inch
Ternary Band Grinding and Polishing Unit
Type PSE-G-220/20
for left-handed rotors
incl. AC-main spindle motor with manual
band tensioning system
Main data
transmissible power (at 3000 r.p.m.) 8,7 kW 8,7 kW
grinding speed 40 m/s 131,20 ft/sec
swivelling range (A-Axis) depending on min.+74 ° min.+74 °
Z2-Axis position max.+88 ° max.+88 °
Additional Axes Z1/Z3
AC-servo motor, straight bevel gear pair
traveling distance min. 550 mm 21,65 inch
traveling distance max. 1030 mm 40,55 inch
power 0,35 kW 0,35 kW
revolution speed 3000 min-1 3000 r.p.m.
max. speed 1500 mm/min 59,06 inch/min
Additional Axes X2/1 X2/2 X2/3
hydraulically operated
lifting 300 mm 11,81 inch
Grinding belt
width, max. 20 mm 0,79 inch
max. belt length incl. 5% belt lengthening 2.200 mm 86,61 inch
