New GURUTZPE GLH30 | CNC Lathes
Have one to sell?
ConditionNew
New

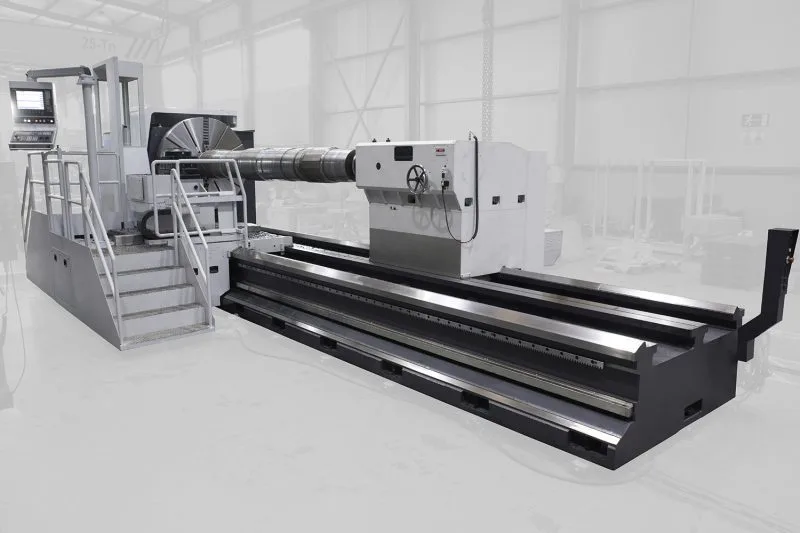

These machines have a monoblock cast iron bed with 4 + 1 guides and V-shaped self-centring double guiding, hardened and rectified. They combine flexibility (carriage crossing) with maximum rigidity, precision, durability and excellent ergonomics. Thus, the worker can, comfortably and safely, supervise the machining process at all times. These characteristics make the GLH lathe excellent for different machining operations, allowing the production of a wide range of large parts.
Main characteristics:
Reduction in commissioning operations. Great productivity
Good access to the work area, safe and ergonomic.
Great stability and excellent damping.
Optimal chip evacuation.
The machines can be equipped with milling, grinding, boring units, etc. to allow very varied machining to be performed.
Machining area:
Swing over bed Sob mm ∅ 3000
Swing over carriage Soc mm ∅ 2500
Distance between points Lbc m ≤30
Head:
Motor power S1/S6 Pm kW 113/140 113/140 142/176
Motor torque S1/S6 Tm kNm 38,3/47,5 65/80 81,4/100
Range of speeds ns rpm 0÷500 0÷300 0÷250
Chuck adaptation DIN 55026 A28 A28 A28
Tailstock centre:
Part weight e.p. Wbc t 40 60 90
