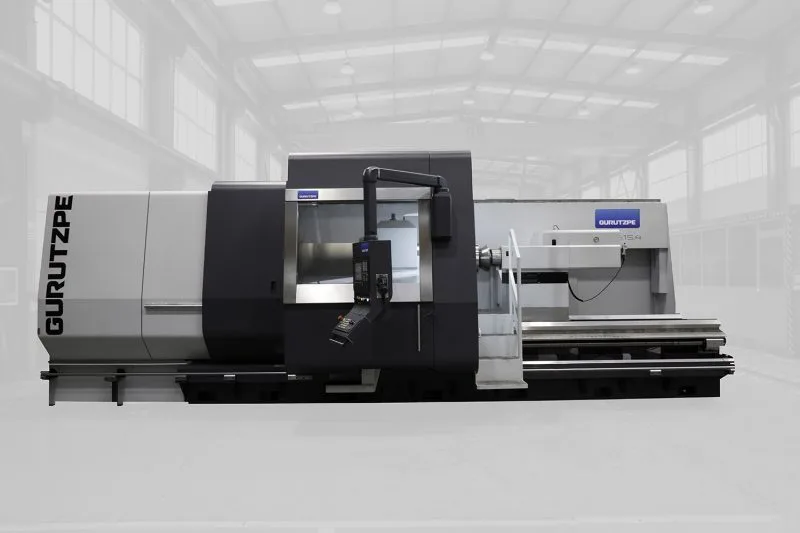

New GURUTZPE GLX 20 | CNC Lathes
Have one to sell?
ConditionNew
New
GLURUTZPE GLX models combine inverted “V” guide technology in a single machine with the traditional sliding configuration.
The machine has 4+1 guides in two separate areas, one for the tool carriage and another for the tailstock centre and steady rests. Thus, the machine is capable of machining the piece in a single set up, allowing the tool to cross the steady rest without stopping work. All this results in a considerable saving in additional commissionings and cycle times.
Main characteristics:
Reduction in commissioning operations. High productivity.
High precision and durability.
Optimum chip evacuation.
Very good ergonomics and access for the operator.
Optional integral enclosure. Greater protection and cleaning.
Multiprocess lathe with milling, grinding, drilling, boring capacity…
Integrated measurement (optional).
Machining area:
Swing over bed Sob mm ∅ 2000
Swing over carriage Soc mm ∅ 1700
Distance between points Lbc m ≤ 20
Head:
Motor power S1/S6 Pm kW 71/88 [92/114]
Motor torque S1/S6 Tm kNm 24,4/30,2 [31,2/38,7]
Range of speeds ns rpm 0÷500*
Chuck adaptation DIN 55026 A20
Tailstock centre:
Part weight e.p. Wbc t ≤25
