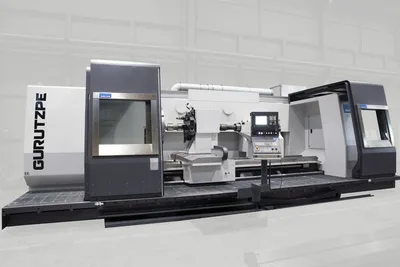

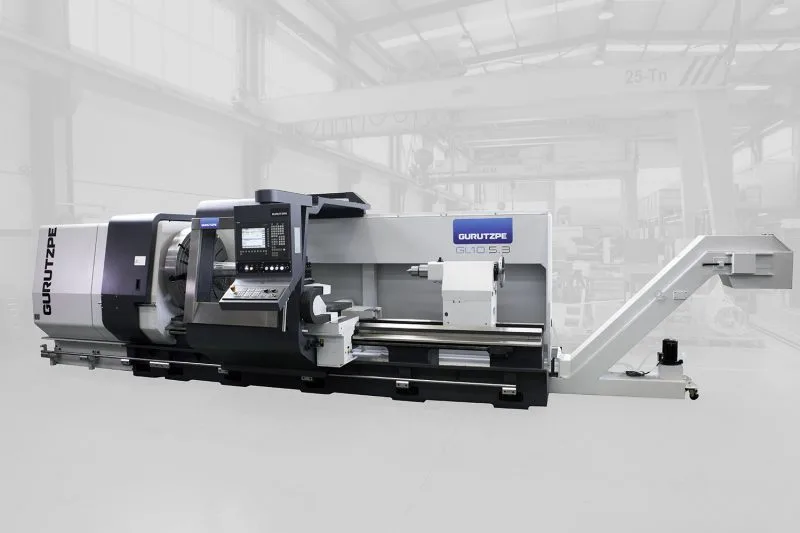

New GURUTZPE GL 13 | CNC Horizontal Lathe
Have one to sell?
ConditionNew
New
The GURUTZPE GL models have a cast iron monoblock bed, V-shaped self-centring double guiding, hardened and rectified, as well as a third support guide. Thanks to this the machine is able to offer maximum rigidity, precision and durability.
The entire structure has been manufactured in stabilized cast iron GG30. The carriages move on a special anti-vibration Biplast, a small film of oil with centralized lubrication. This combination makes the whole structure perfect for heavy work as well as high precision work.
This model is capable of machining an endless number of parts, from lamination rollers, power generation axles and threaded pipes for the oil industry.
Main characteristics:
Simple concept of horizontal lathe = great reliability.
Great stability and excellent damping thanks to the cast monoblock base and the V-shaped self-centring double guiding.
Optimal chip evacuation.
Very good ergonomics and access for the operator.
Optional integral fairing. Greater protection and cleaning.
The machines can be equipped with a Y axis to machine the most complex geometries.
Optional head motorization to perform additional machining operations: milling, drilling…
Integrated measurement (optional)
Machining area:
Swing over bed Sob mm ∅ 1300
Swing over carriage Soc mm ∅ 1000
Distance between points Lbc m ≤ 8
Head:
Motor power S1/S6 Pm kW 28/34 [39/48]
Motor torque S1/S6 Tm kNm 5,3/6,5 [7,4/9,2]
Range of speeds ns rpm 0÷1000*
Chuck adaptation DIN 55026 A11
Spindle bore ∅ ∅sb mm Ø110 [Ø360]
Tailstock centre:
Part weight e.p. Wbc t 6/10/12
* Peak speed for 10 minutes. Maximum speed in continuous, 60% of peak speed. For other possibilities, please ask.
