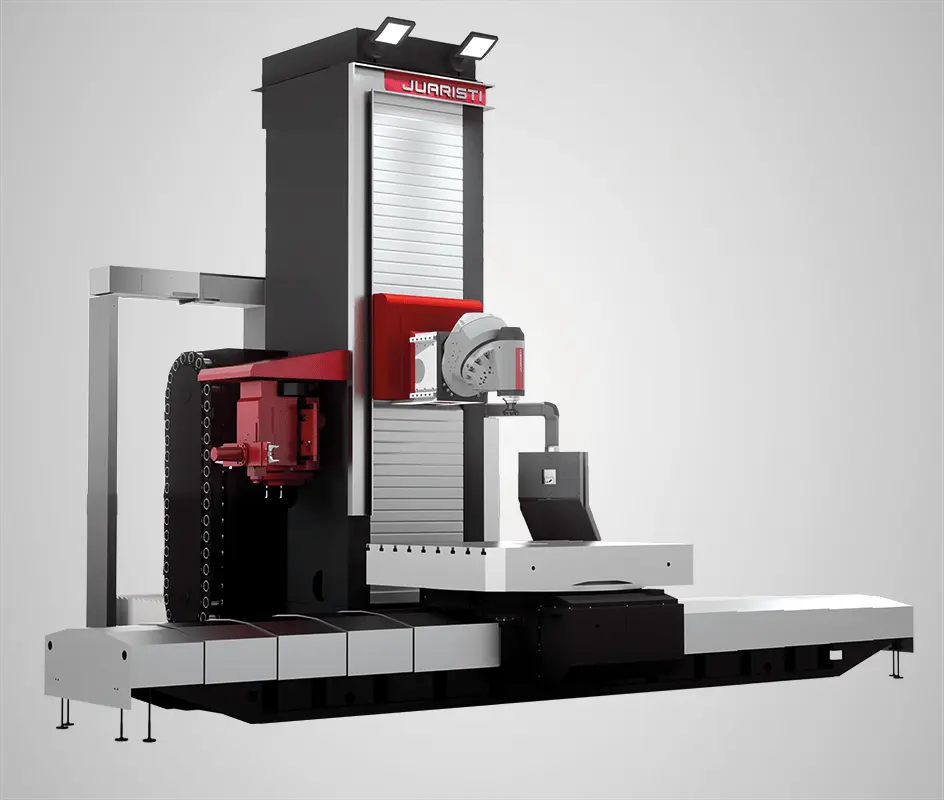

TX-RAM SERIES
TABLE-TYPE MILLING-BORING CENTER
Horizontal boring-milling centers
The TX series is one of the most recognisable symbols in the JUARISTI universe. We have a long track record of designing this type of solutions, which over the years have become one of the most sought after by our customers. This machine can successfully carry out boring and milling operations. Its thermo-symmetrical structure provides high rigidity and precision. The JUARISTI TX-RAM stands out for its reliability and unbeatable performance.
Box-in-box concept: head centred on the thermo-symmetric column and RAM centred on the headstock with four-sided guidance.
High performance and vibration-free even under extreme conditions.
Precision machining and long service life.
Large part machining capacity: work area that allows turning of parts up to 5,000 mm long and weighing 60 t.
STROKES:
X – Cross table mm 2,000-3,000-4,000-5,000-6,000
Y – Vertical head mm 1,500-2,000-2,500-3,000-3,500-4,000
Z – Longitudinal column mm 1,500-2,000-2,500-3,000
Rapid feeds:
X, Y, Z, W m/min 30-25-20
