New JUARISTI TH5-MGX12 | 5-Axis Universal Machining Centers
Have one to sell?
ConditionNew
New

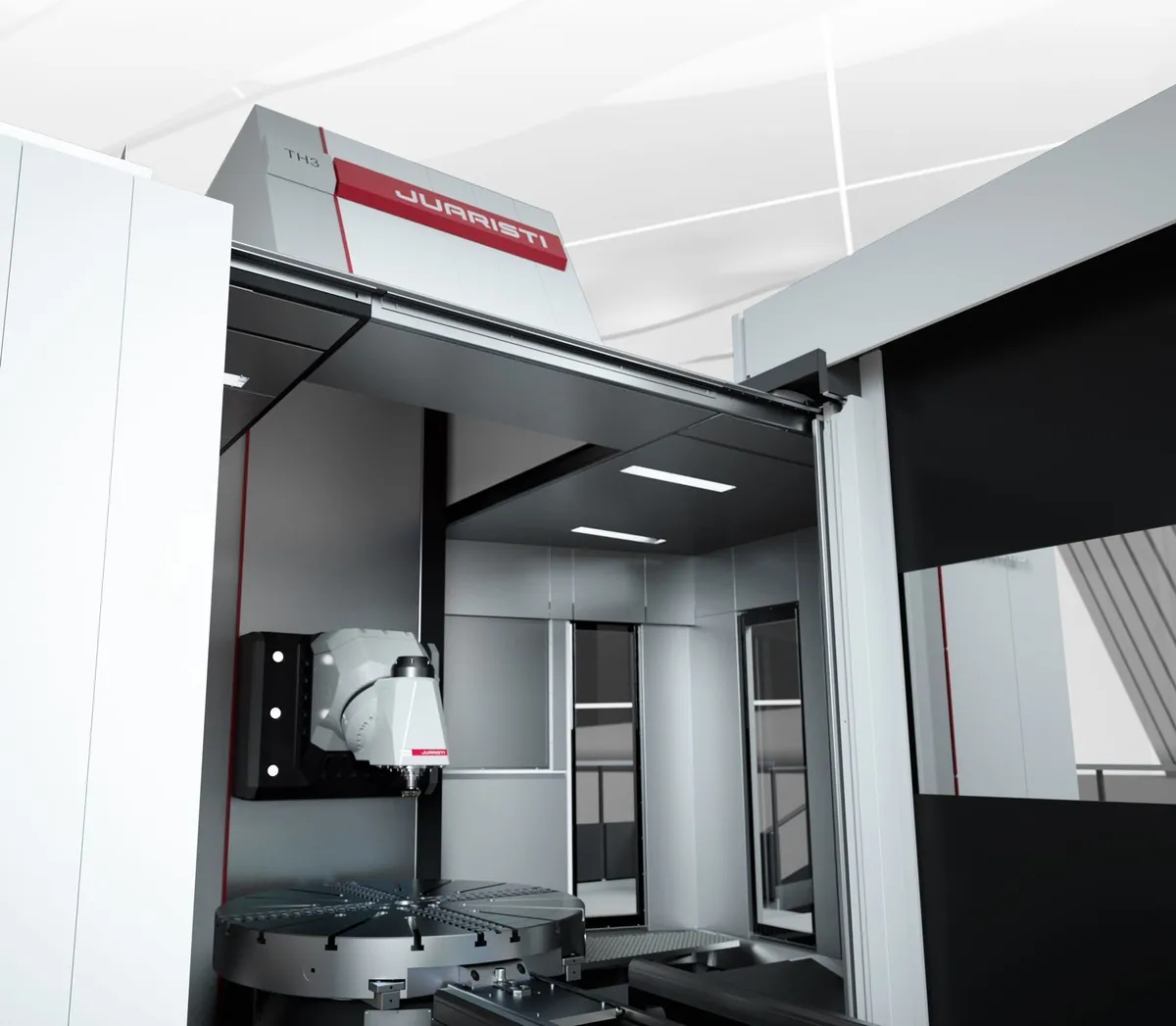

TH SERIES
5-AXIS UNIVERSAL MACHINING CENTERS
High productivity multitasking centers for milling, boring and turning
The TH series is optimised for multitasking. Its symmetrical design with central head and 4 vertical guides (two front and two rear) and its oversized structural elements provide great robustness and stability.
It stands out for its powerful chip removal, with feeds of up to 40 m/min and a 3 m/s2 acceleration.
It is capable of working large, complex work pieces thanks to its wide axis stroke (4,000 – 2,500 – 2,500 mm XYZ) and its compatibility with up to 12-tonne rotary tables.
High dynamics in a large machining centre.
Thermo-symmetric structure.
Multifunctionality.
High customisation and automation capacity options.
STROKES:
X – Cross table mm 2000-3000-4000-5000
Y – Vertical head mm 2000-2500-3000
Z – Longitudinal column mm 2000-2500-3000
Quick feeds:
X, Y, Z m/min 40
