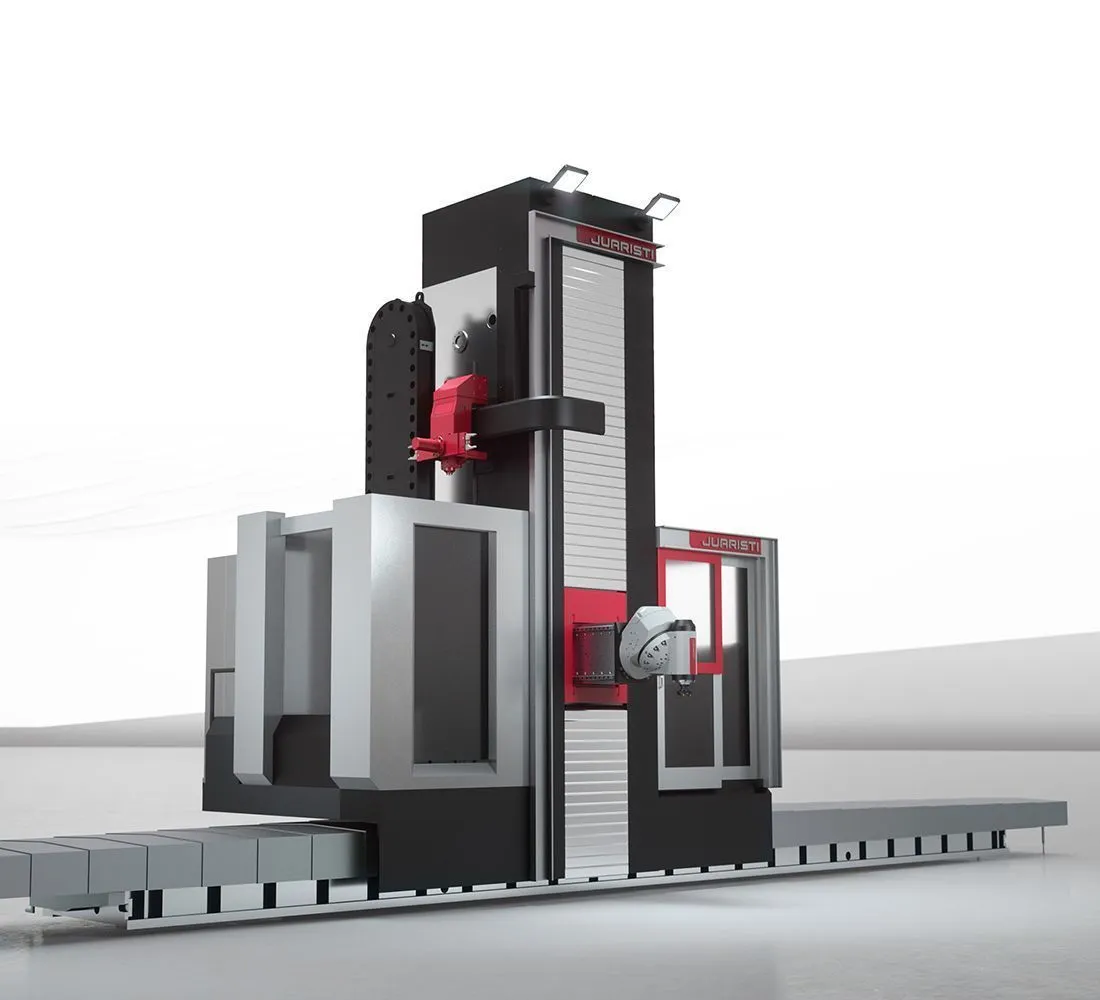

New JUARISTI MX9 | Horizontal Floor Type Boring Mills
Have one to sell?
ConditionNew
New
MX SERIES
FLOOR TYPE MILLING MACHINE WITH CENTRAL HEAD
Traveling column machine with exclusive design to improve performance
The MX series is a premium solution featuring precision, rigidity and elevated dynamics, the result of more than 20 years of experience in designing this series.
The “box-in-box” concept introduced by JUARISTI for the first time on this type of machine, with a symmetrical column and completely closed central head, provides the machine with optimum rigidity, accuracy and dynamics.
Maximum precision thanks to the box-in-box design.
Thermo-symmetric structure.
High dynamics (up to 30 m/min).
Vertical head travel and RAM four-side guided.
Multiple multitasking options.
WORK STROKES:
X – Longitudinal column mm 4,000 + N x 2,000
Y – Vertical head mm 2,000 + N x 500 …. 7,000
Z – Cross RAM mm 2,000
Feeds:
X, Y, Z, W m/min 30-20-20
