New JUARISTI TX3-MG20 | Milling Centers
Have one to sell?
ConditionNew
New

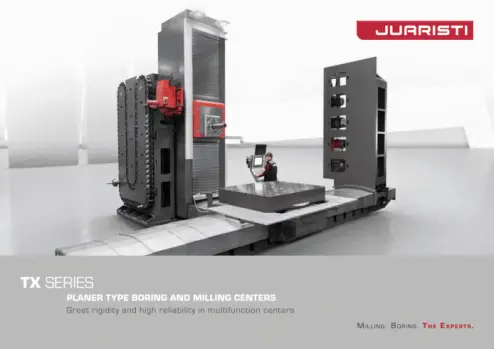

TX SERIES
TABLE-TYPE MILLING CENTERS
Highly stable and reliable horizontal milling centers
The TX series is one of the most recognisable emblems within the JUARISTI universe. We have a long track record of designing this type of solutions, which over the years have established themselves as one of the most sought after by our customers.
This planer type machining center can successfully carry out boring and milling works. It is characterised by its symmetrical design with a centred headstock on the column, which provides a high degree of precision and dynamics.
Thermo-symmetric design with centered head.
Oversized cast iron structural components.
Hydrostatic rotary table with double pinion anti-blacklash.
High-precision and rigid linear guides.
Multiple customisation and automation options.
Stroke:
X – Cross table mm 2,000-3,000-4,000-5,000
Y – Vertical head mm 2,000-2,500-3,000
Z – Longitudinal column mm 2,000-2,500-3,000
Feeds:
X-Y-Z Rapid feeds mm/min 30,000
W feed mm/min 20,000
B feed min-1 5
B-axis hydrostatic rotary table:
Table size mm 1,600×1600 / 1,600×2,000 / 2,000×2,000 / 2,000×2,500
Max. load kg 20,000
