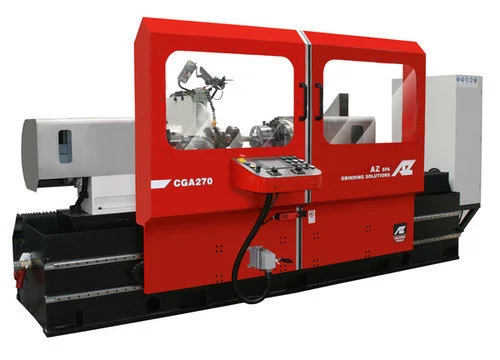

New AZ SPA CGA CRANKSHAFT GRINDER | Crankshaft Grinders

Description

The machine moves the grinding head. The workpiece is clamped by headstock fixed on the base and tailstock moving on table support by linear guideways. Grinding wheel carriage is movable on Z
and X axes by ballscrew and guideways. This solution with grinding wheel moving permit to reduce the overall machine dimensions.

PLC WITH INTERPOLATION FUNCTION
WHEEL HEAD MOVING
BALL SCREW ON X AND Z AXIS
LINEAR GUIDEWAYS ON X AND Z AXIS
AUTOMATIC DRESSING

NEW COMPACT DESIGN with grinding wheel
movement permits to reduce the overhall
machine dimensions.
MULTIPLE WORKING FUNCTIONS: plongee
grinding, shoulders grinding, cylindrical
grinding and automatic dressing cycle
