VG560SA - Clausing Kalamazoo Vertical Tilt Head Bandsaw 22” x 30” Cutting Capacity
Have one to sell?
ConditionNew
New

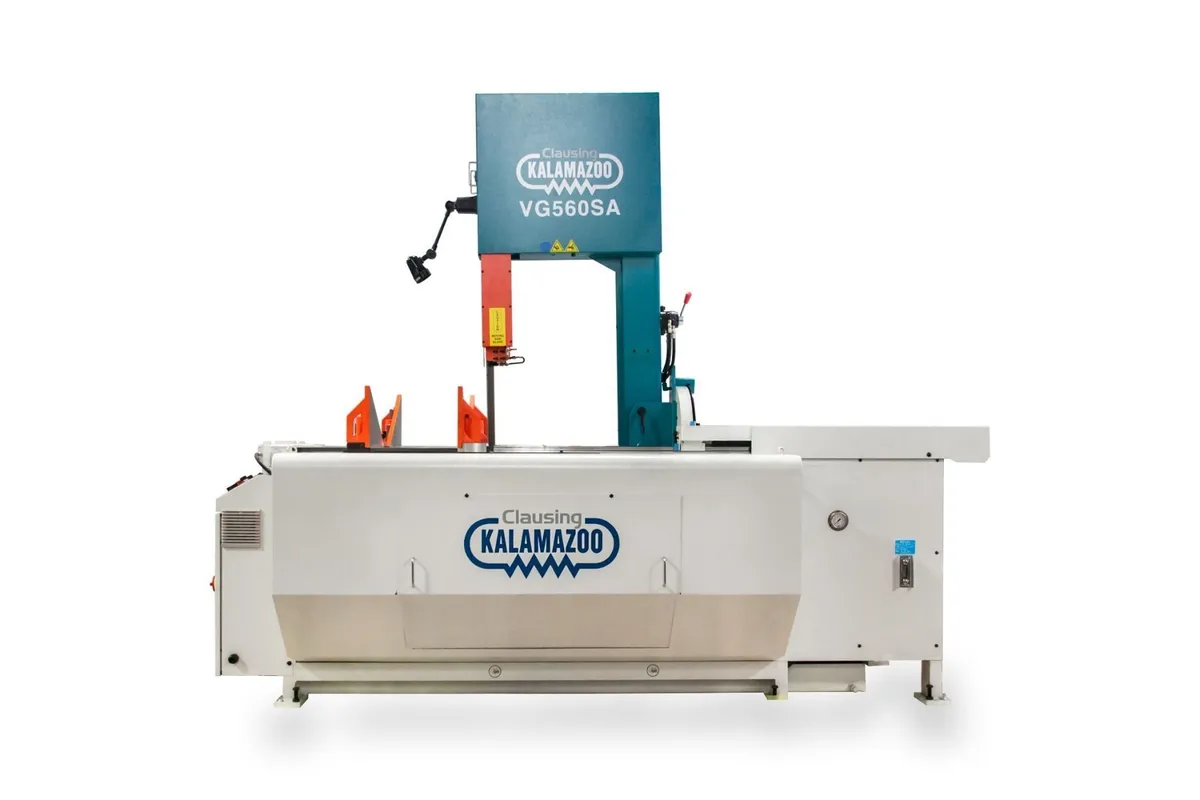

Clausing Kalamazoo Vertical Tilt Head Bandsaw 22” x 30” cutting capacity, head can tilt 60 degrees left or right and cant forward 5 degree for better cutting relief, speeds 66-264 FPM designed for volume production. 7.5 Hp Drive motor. Smart 100 PLC with HMI touch screen controller for semi-automation of the cutting program
Features and Benefits:
The Vertical Tilt Head Saw comes with a heavy duty cast iron work table with two way tilt (60°L & 60°R), dual (left/right) hydraulic vises for solid work piece clamping. 7.5 Hp Blade drive motor and 1 Hp hydraulic system.Front mounted control panel controls all sawing functions such as blade speed, frame feed speed, hydraulic tilt, hydraulic left or right vise clamping, hydraulic guide arm height adjustment, start/stop with the HMI touch screen.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine. 230 or 460 voltage, other voltages will need a transformer.
Drive Type
Motor to Gearbox
Maximum Cutting Capacity
90° Rectangle (inch)
0 ° frame cant 22 x 30
90° Rectangle (inch)
5 ° frame cant 20 x 27.5
45° Rectangle Left (inch)
0 ° frame cant 22 x 21
5 ° frame cant 20 x 19
60° Rectangle Left (inch)
0 ° frame cant 22 x 14
5 ° frame cant 20 x 13
45° Rectangle Right (inch)
0 ° frame cant 20 x 19.5
5 ° frame cant 20 x 18
60° Rectangle Right (inch)
0 ° frame cant 22 x 12
5 ° frame cant 20 x 10.5
Maximum Vise Opening (inch) 22
Blade Speed ft/min 66 – 264
Blade Size (inch) 208.6 x 1.25 x 0.043
Blade Tension Hydraulic Controlled
Blade Guide Tungsten Carbide
Guide Arm Hydraulic Positioning on Linear Guide
Saw Blade Drive Motor Horsepower 7.5
Hydraulic Motor Horsepower 1
Hydraulic Tank Capacity (gal) 22.1
Hydraulic Output Pressure (PSI) 540 – 640
Coolant Pump Horsepower 1/4
Coolant Tank Capacity (gal) 34
Head Feed Range (lb/ft) 0 – 132
Work Table Size (inch) 33 x 20
Work Table Height (inch) 41
Floor Space Required (WxDxH inch) 122.8 x 109.5 x 101.3
Machine Weight (lbs.) 4,796
Powerful 7.5 Hp Drive Motor
Inverter variable speed drive
Left and Right duel hydraulic rack gear vises are operated from the control panel. Independent operation of the left and right jaw or both together
Hydraulic pressure gauges are mounted in the control panel. This lets the operator easily adjust blade cutting pressure and vise clamping pressure
Solid carbide blade guides
Flood coolant system
Hydraulic head tilt operation from 90 to 60 degrees left or right with digital display of miter angle 0.1 degree accuracy
Hydraulic guide arm positioning for proper work height material
Hydraulic blade tension
Optional roller tables available
2 year limited warranty
