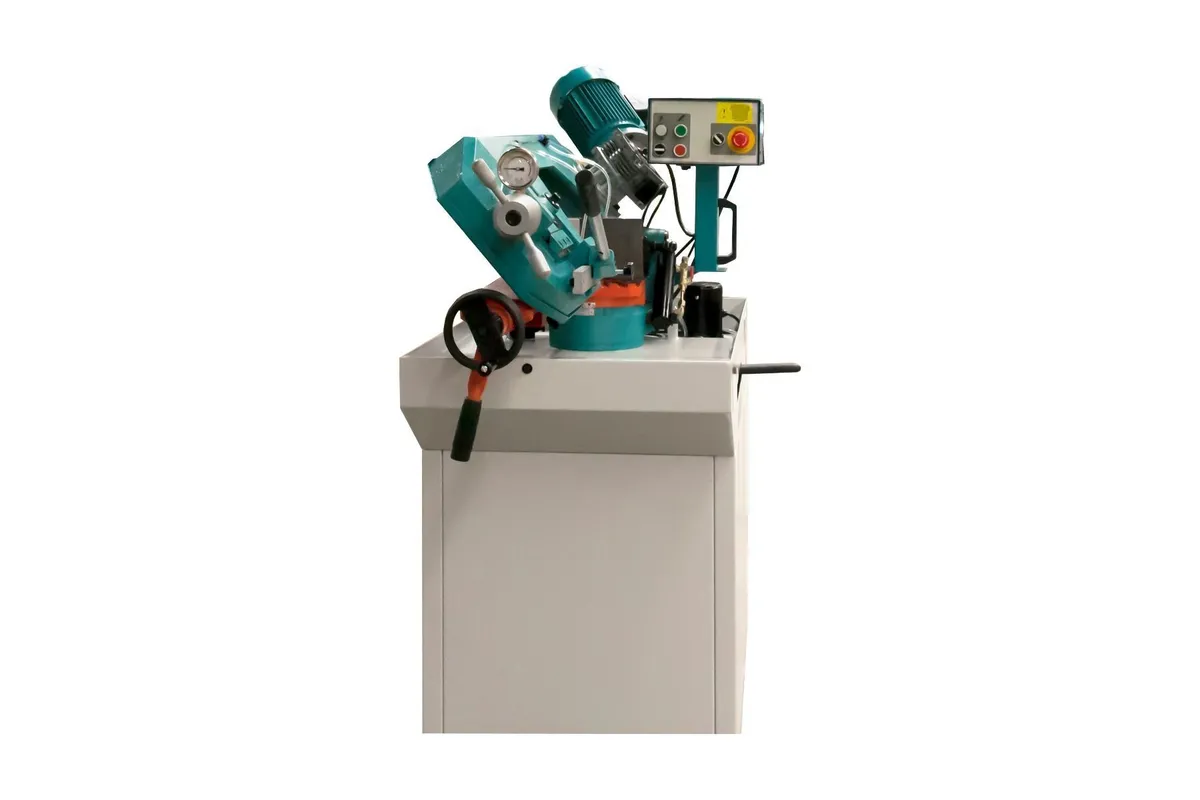

MS9V3 - Clausing Kalamazoo Manual Horizontal Mitering Bandsaw 9.45” x 6” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Manual Horizontal Mitering Bandsaw 9.45” x 6” Max Rectangular Capacity, 8.9” Round Capacity, Variable Speed Drive, SFPM 132 and 264 Blade Speed, 1-1/2 Hp drive motor, 230 Volts 3 Phase
Features and Benefits:
Manual wet cutting swivel bandsaw comes with simplified control switches mounted on saw side as well as a swivel miter saw frame for adjustable left 0-60deg anglesMotor with worm gear driven gear box, worm shaft is hardened and ground.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Variable Speed Drive
Maximum Capacity Round (inch) 8.9
Maximum Capacity Rectangle (inch) 9.45 x 6
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 5.75 x 8.27
Blade Size 1” x .035” x 96.5”
Blade Speeds (SFPM) 132 – 264
Blade Guide Type Carbide
Motor Horsepower 1.5
1.5hp drive motor, heavy-duty reducer, & Variable Speed drive assembly 3 phase machines
Swivel miter saw frame for adjustable left 0-60deg angles
Motor with worm gear driven gear box, worm shaft is hardened and ground
Blade tension gauge system
Coolant System
Machine stand with door
Feed down cylinder
2 Year limited warranty
