MS10D - Clausing Kalamazoo Manual Horizontal Double Miter Bandsaw 13.8” x 7.9” Max Rectangular Capacity
Have one to sell?
ConditionNew
New

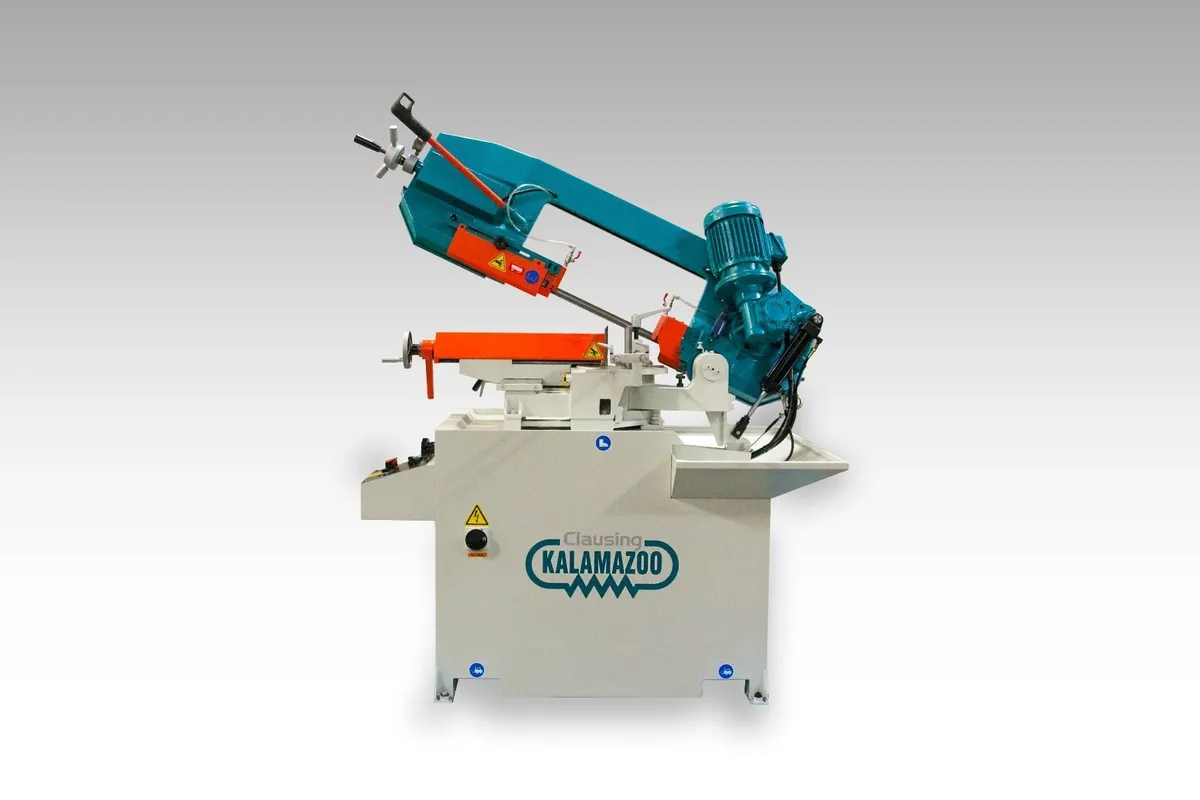

Clausing Kalamazoo Manual Horizontal Double Miter Bandsaw 13.8” x 7.9” Max Rectangular Capacity, 10.2” Round Capacity, Variable Inverter Drive, SFPM 118 to 236 Blade Speed, 1-1/2 Hp 2 speed drive motor, 230 Volts 3 Phase
Features and Benefits:
Manual wet double miter saw frame for adjustable left or right angles.Two speed motor with worm gear driven gear box, worm shaft is hardened and ground.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Variable Inverter Drive
Maximum Capacity Round (inch) 10.2
Maximum Capacity Rectangle (inch) 13.8 x 7.9
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 8.7 x 7.9
Blade Size 1” x .035” x 120.3”
Blade Speeds (SFPM) 118 - 236
Blade Guide Type Carbide
Motor Horsepower 1.5
1.5hp drive motor, heavy-duty reducer, & variable step drive assembly
Double miter saw frame for adjustable left or right angles
2 - speed motor with worm gear driven gear box, worm shaft is hardened and ground
Blade tension gauge system
Coolant System
Machine stand with door
Bi-metal saw blade
2 Year limited warranty
