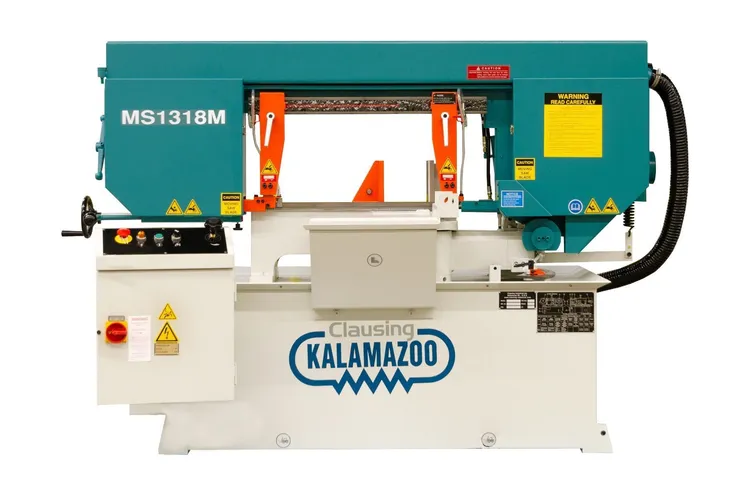

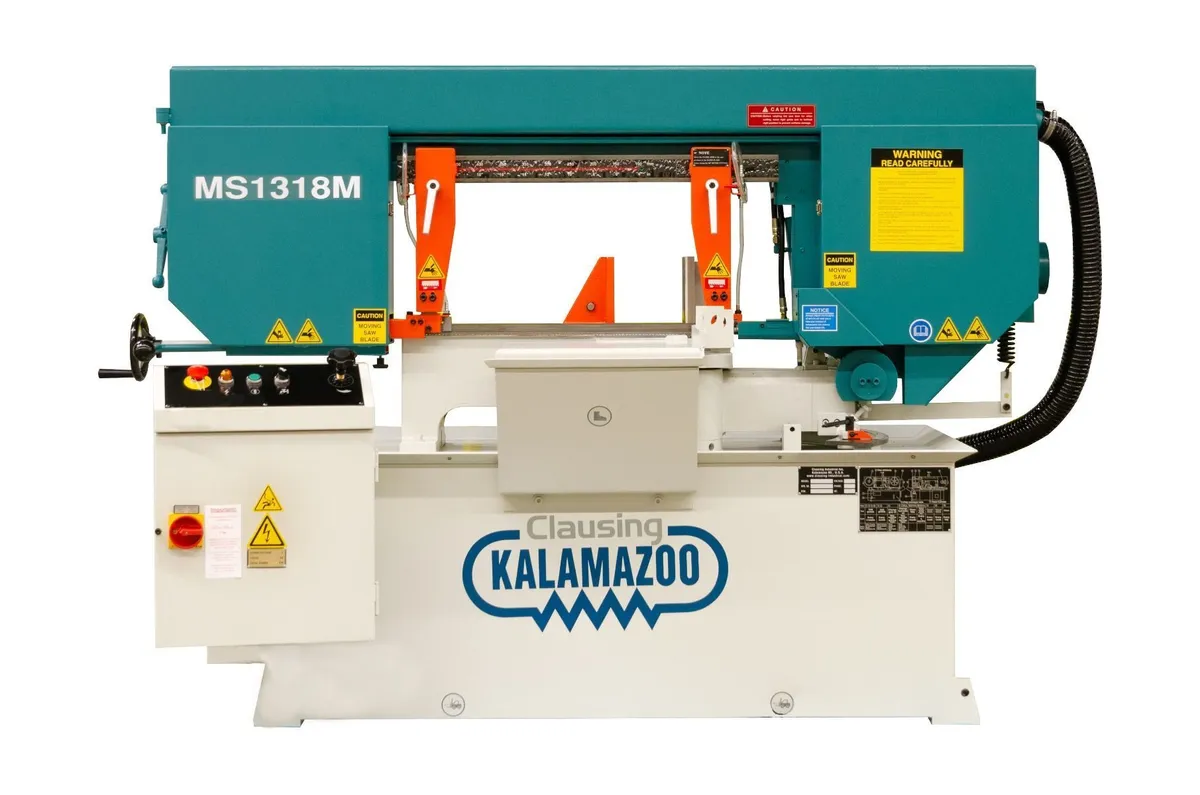

MS1318M - Clausing Kalamazoo Manual Horizontal Miter Bandsaw 18.5” x 10.6” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Manual Horizontal Miter Bandsaw 18.5” x 10.6” Max Rectangular Capacity, 13” Round Capacity, Variable Sheave Pulley Drive, SFPM 98 to 328 Blade Speed, 3 Hp drive motor, 230/460 Volts 3 Phase
Features and Benefits:
Manual Horizontal Miter Bandsaw can allow the operator to accurately pivot head for angle cuts from 0º, for a 90º cut, to 60º.Manual 4 speed step pulley drive will adjust the speed of the pulleys with a button or knob. As the 3 hp drive motor with magnetic starter & overload protection.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Variable Inverter
Maximum Capacity Round (inch) 13
Maximum Capacity Rectangle (inch) 18.5 x 10.6
Voltage 230/460
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 10.5 x 10.5
Blade Size 1” x .035” x 163”
Blade Speeds (SFPM) 102 - 377
Blade Guide Type Carbide
Motor Horsepower 3
3 Hp drive motor with magnetic starter & overload protection
Manual vise clamping and head rise
Swivel saw head allows the operator to accurately pivot head for angle cuts from 0º to 60º Swing the head to desired angle with out having to move the cutting material (stock can stay at 90 degrees to saw bed)
Carbide blade guides provide excellent stability for the saw blade
Variable blade speed by inverter
Powered chip brush removes chips from the blade extending blade life
Integrated coolant system
Cast iron moveable guide arms provide rigidity for an accurate cut
Flushing hose
Adjustable work stop
2 Year limited warranty
