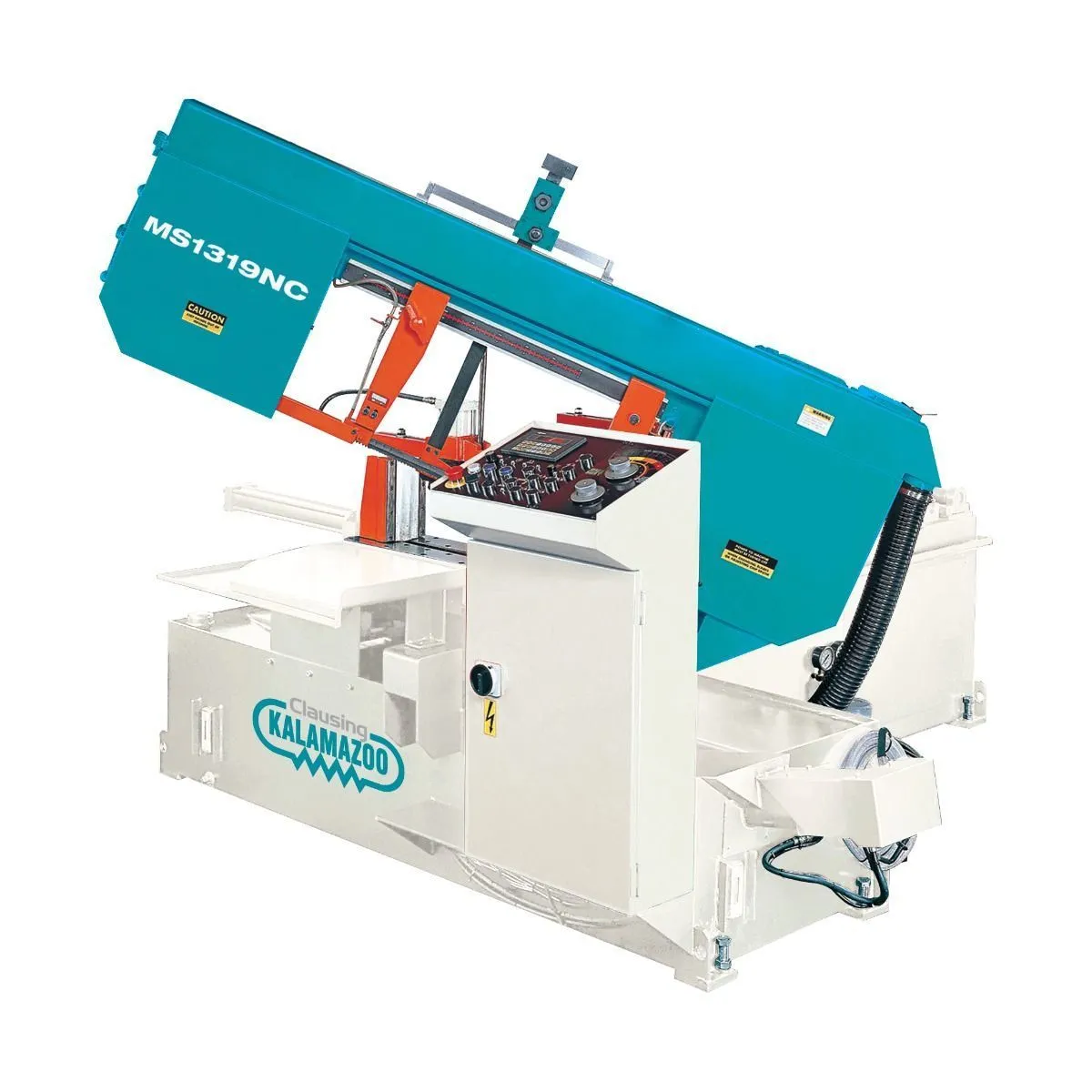

MS1319NC - Clausing Kalamazoo Automatic Horizontal Miter Bandsaw 11” x 19.68” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Automatic Horizontal Miter Bandsaw 11” x 19.68” Max Rectangular Capacity, 13” Round Capacity, Smart 100 PLC Will Program Up To 100 Jobs, Variable Inverter Drive, SFPM 66 to 330 Blade Speed, 5 Hp drive motor, 230 or 460 Volts 3 Phase
Features and Benefits:
Automatic Miter Bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts.A powerful drive motor provides the power, and the Smart NC-100 technology programmable up to 100 different jobs.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Variable Inverter Drive
Maximum Capacity Round (inch) 13
Maximum Capacity Rectangle (inch) 11 x 19.68
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 10.43 x 10.43
Blade Size 1.25” x .042” x 193”
Blade Speeds (SFPM) 66 - 330
Blade Guide Type Carbide
Motor Horsepower 5
The swivel mitering saw head allows cutting at any angle between 90 (straight cut) and 45 (miter cut)
Precision pivot system facilitates easy and accurate adjustment for angle cuts
Inverter controlled infinitely variable speed
Smart NC-100 technology programmable up to 100 different jobs
Carbide blade guides with roller bearings
Automatic shutoff after preset number of cuts or when out of stock
5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
Integrated coolant system
Automatic kerf loss compensation & computer controlled multiple indexing
Discharge table with built-in coolant return
Computer controlled multiple indexing
Additional flushing hose
Hydraulic front and rear vises
2 Year limited warranty
