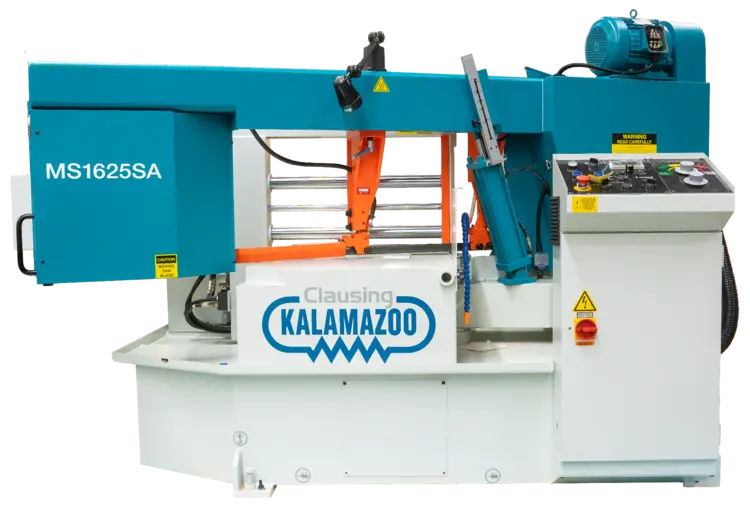

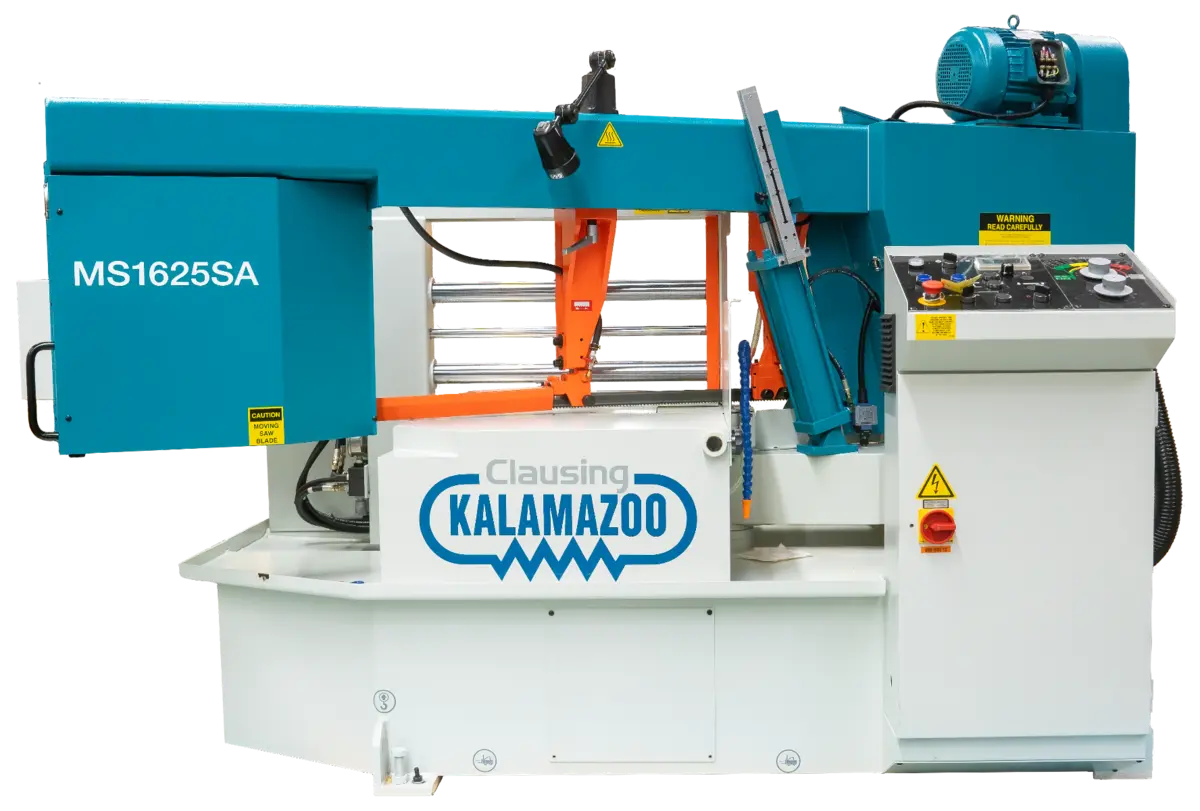

MS1625SA - Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw, Twin Column Head Support, 15” x 26.6” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw, Twin Column Head Support, 15” x 26.6” Max Rectangular Capacity, 16” Round Capacity, Variable Inverter Drive, SFPM 66 to 328 Blade Speed, 5 Hp drive motor, 230 or 460 Volts 3 Phase
Features and Benefits:
Semi-Automatic Saws can allow for power vise clamping, head rise and lower. The saw head will lower to make the cut and the blade will shut off after the cut is finished.Inverter drive speed will adjust the speed of the pulleys with a button or knob. As you adjust the frequency in the inverter changes the drive motor RPM.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Variable Inverter Drive
Maximum Capacity Round (inch) 16
Maximum Capacity Rectangle (inch) 15 x 26.6
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 16 x 16
Blade Size 1.25” x .042” x 209”
Blade Speeds (SFPM) 66 - 328
Blade Guide Type Carbide
Motor Horsepower 5
Rigid and heavy-duty pivot and trunion
Electrical components located inside the control box with main lockout disconnect
24.5” solid discharge table with coolant return
Swivel saw head mitering from 90° to 60°
Carbide blade guides provide excellent stability for the saw blade
Inverter controlled infinitely variable blade speed
Precision feed pressure & feed rate dual valve system
Integrated coolant system
Cast iron moveable guide arms provide rigidity for an accurate cut
Flushing hose
Adjustable work stop
36” infeed roller table
Built-in adjustable material stop
2 Year limited warranty
