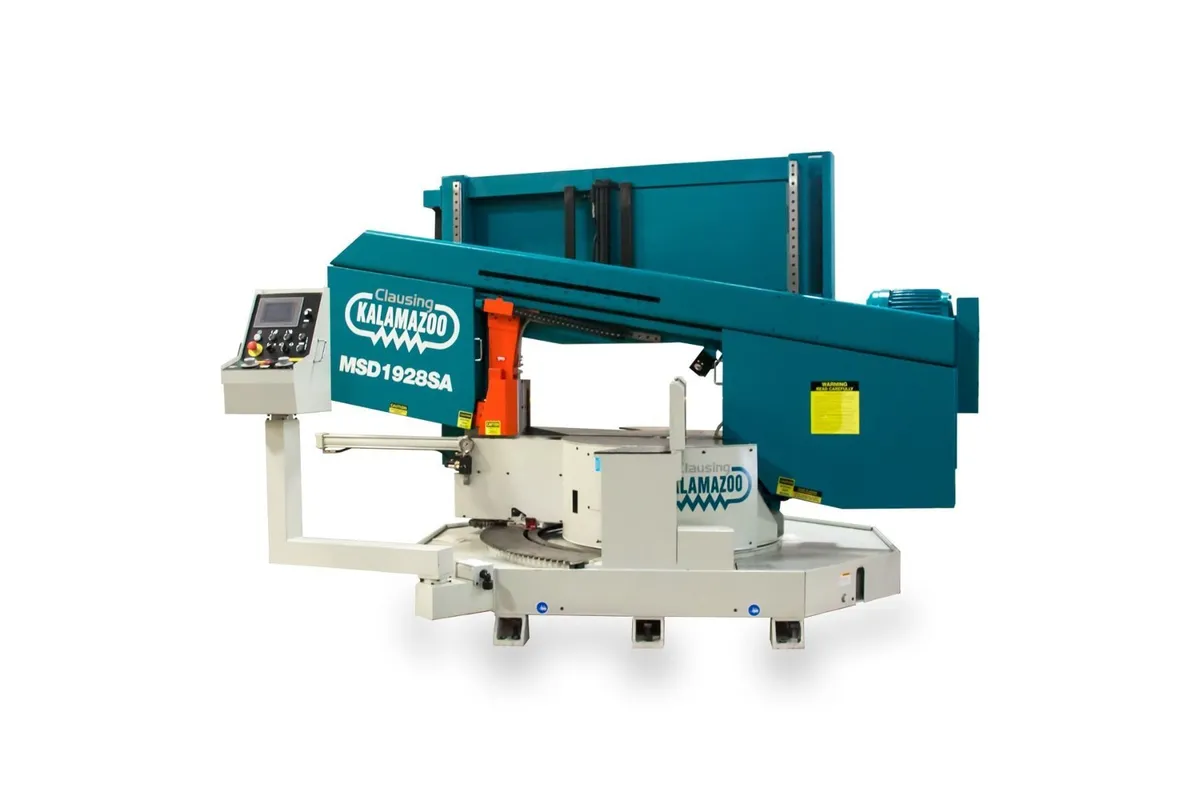

MSD1928SA - Clausing Kalamazoo Semi-Automatic Horizontal Dual Miter Bandsaw, Twin Column Head Support, 16.5” x 28” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Semi-Automatic Horizontal Dual Miter Bandsaw, Twin Column Head Support, 16.5” x 28” Max Rectangular Capacity, 19” Round Capacity, Variable Inverter Drive, SFPM 83 to 330 Blade Speed, 7.5Hp drive motor, 230 or 460 Volts 3 Phase
Features and Benefits:
Semi-Automatic Heavy duty inverter blade drive system with variable blade speed control Double Miter Bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts left or right up to 60 degrees.Rigid, oversized linear guides are precision ground to ensure smooth hydraulically driven consistent feed rate of the cutting head.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Variable Inverter Drive
Maximum Capacity Round (inch) 19
Maximum Capacity Rectangle (inch) 16.5 x 28
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 16.5 x 17.7
Blade Size 1.5” x .05” x 257.5”
Blade Speeds (SFPM) 83 - 330
Blade Guide Type Carbide
Motor Horsepower 7.5
Rigid and heavy-duty pivot and trunion
Electrical components located inside the control box with main lockout disconnect
24.5” solid discharge table with coolant return
Swivel saw head mitering from 90° to 60°
Carbide blade guides provide excellent stability for the saw blade
Inverter controlled infinitely variable blade speed
Precision feed pressure & feed rate dual valve system
Integrated coolant system
Cast iron moveable guide arms provide rigidity for an accurate cut
Flushing hose
Adjustable work stop
36” infeed roller table
Built-in adjustable material stop
2 Year limited warranty
