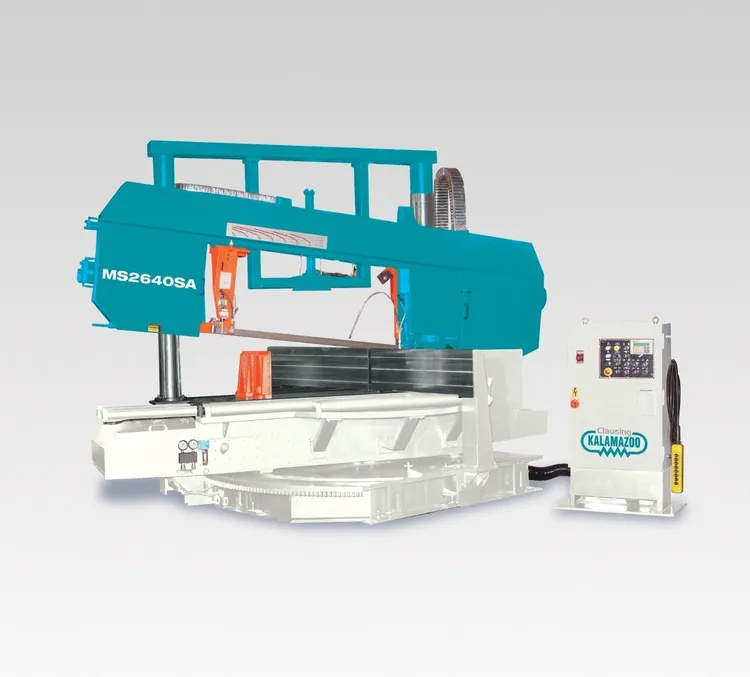

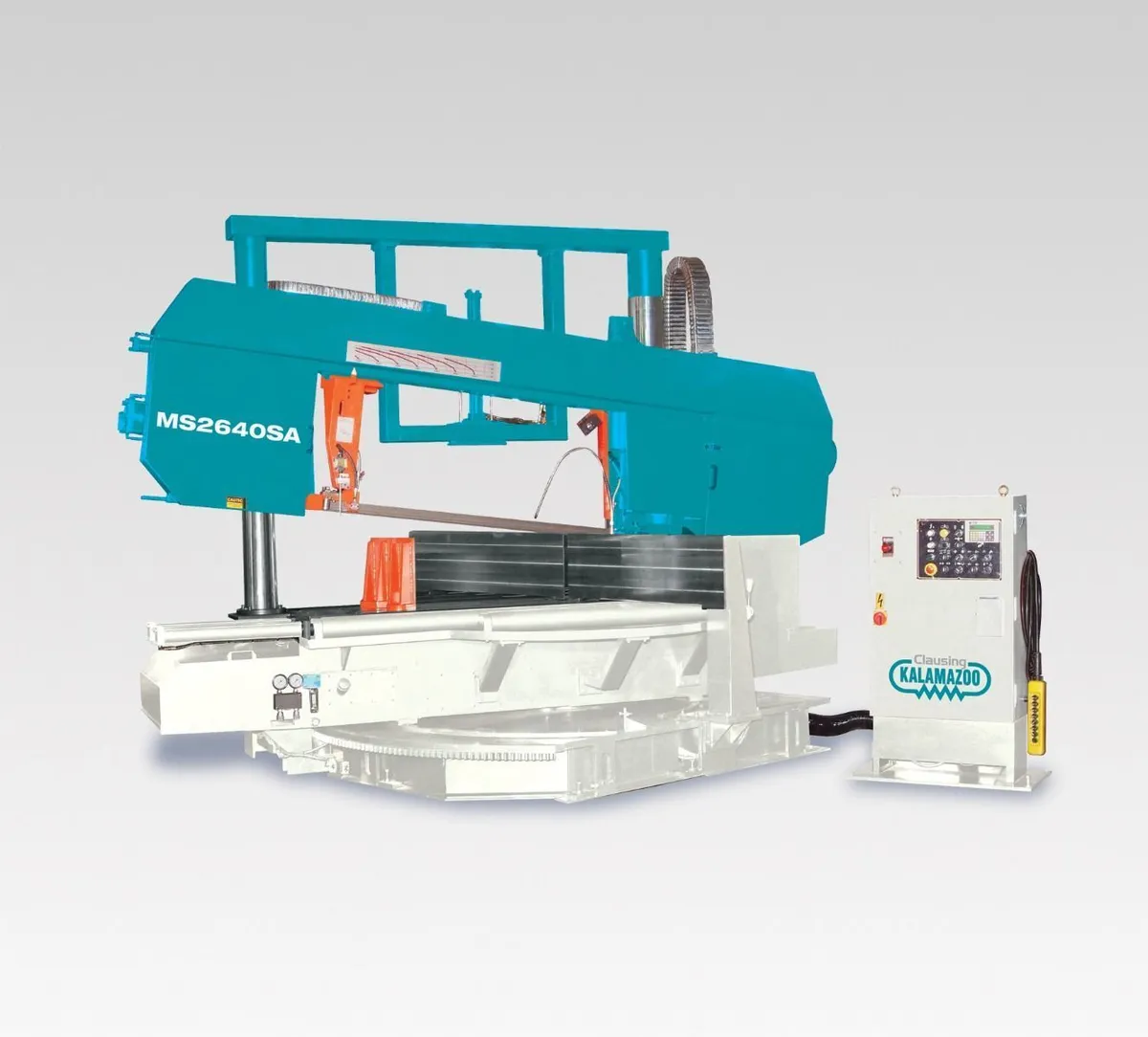

MSD2640SA - Clausing Kalamazoo Semi-Automatic Horizontal Double Miter Bandsaw, Twin Column Head Support, 20.5” x 40” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Semi-Automatic Horizontal Miter Bandsaw, Twin Column Head Support, 20.5” x 40” Max Rectangular Capacity, 26” Round Capacity, Variable Inverter Drive, SFPM 49 to 295 Blade Speed, 10 Hp drive motor, 230 or 460 Volts 3 Phase
Features and Benefits:
Semi-Automatic Inverter controlled infinitely variable blade speed Miter Bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts. Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders. Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Variable Inverter Drive
Maximum Capacity Round (inch) 26
Maximum Capacity Rectangle (inch) 20.5 x 40
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 20.5 x 24.4
Blade Size 2” x .063” x 326.8”
Blade Speeds (SFPM) 49 - 295
Blade Guide Type Carbide
Motor Horsepower 7.5
Mitering saw head from 90° to 60°
Precision feed pressure & feed rate dual valve system
Inverter controlled infinitely variable speed
7.5 degree blade cant for longer blade life
Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders
Cross link connecting the two columns for enhanced structural strength
45 degree forward and backward swivel with automatic angle lock-in
Integrated coolant system
Specially designed gearbox for smooth and powerful cutting
Heavy duty inverter blade drive system
Hydraulically operated carbide blade guides
Precision feed pressure & feed rate dual valve system
Light projection for precise length measurement
Proximity switch for sensing blade slippage or breakage
2 Year limited warranty
