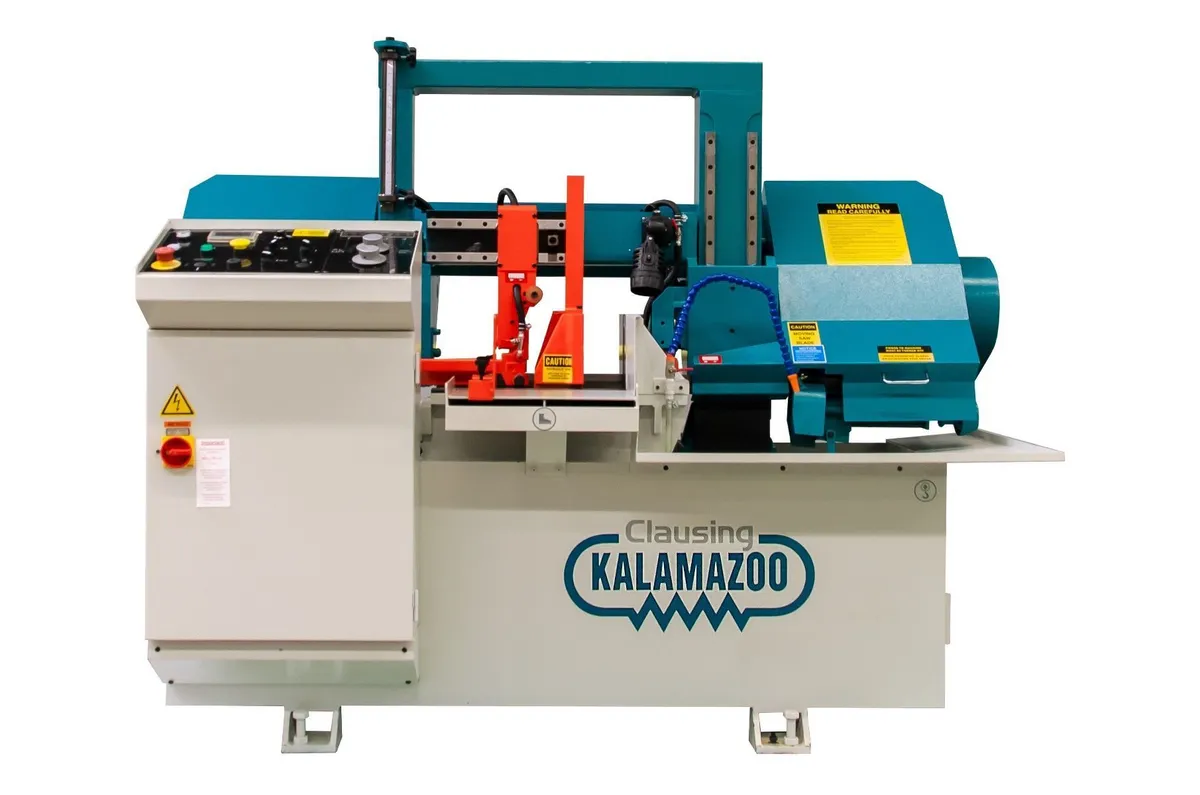

H1013SA - Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw 10.2” x 13.4” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Double Column Semi-automatic Horizontal Bandsaw 10.2” x 13.4” Max Rectangular Capacity, 10.2” Round Capacity, 49 to 262 SFPM Blade Speed, 5 Hp drive motor, 230 volts 3 Phase
Features and Benefits:
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at either 230 or 460, other voltages may require a transformer or special order.Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Infinitely variable speed
Maximum Capacity Round (inch) 10.2
Maximum Capacity Rectangle (inch) 10.2 x 13.4
Voltage 230 or 460
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) N/A
Blade Size (inch) 1.25 x 0.042 x 161
Blade Speeds (SFPM) 49-262
Blade Guide Type Carbide
Motor Horsepower 5
Infinitely variable speed
Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
Hydraulic power chip auger
Precision feed pressure & feed rate valves
Automatic hydraulic blade tensioning
Carbide blade guides with roller bearings
Power driven blade brushes
Blade slippage or breakage detection
Discharge table with built-in coolant return
LCD digital blade speed monitor
Cast iron vises with replaceable hardened wear plates
2 Year limited warranty
