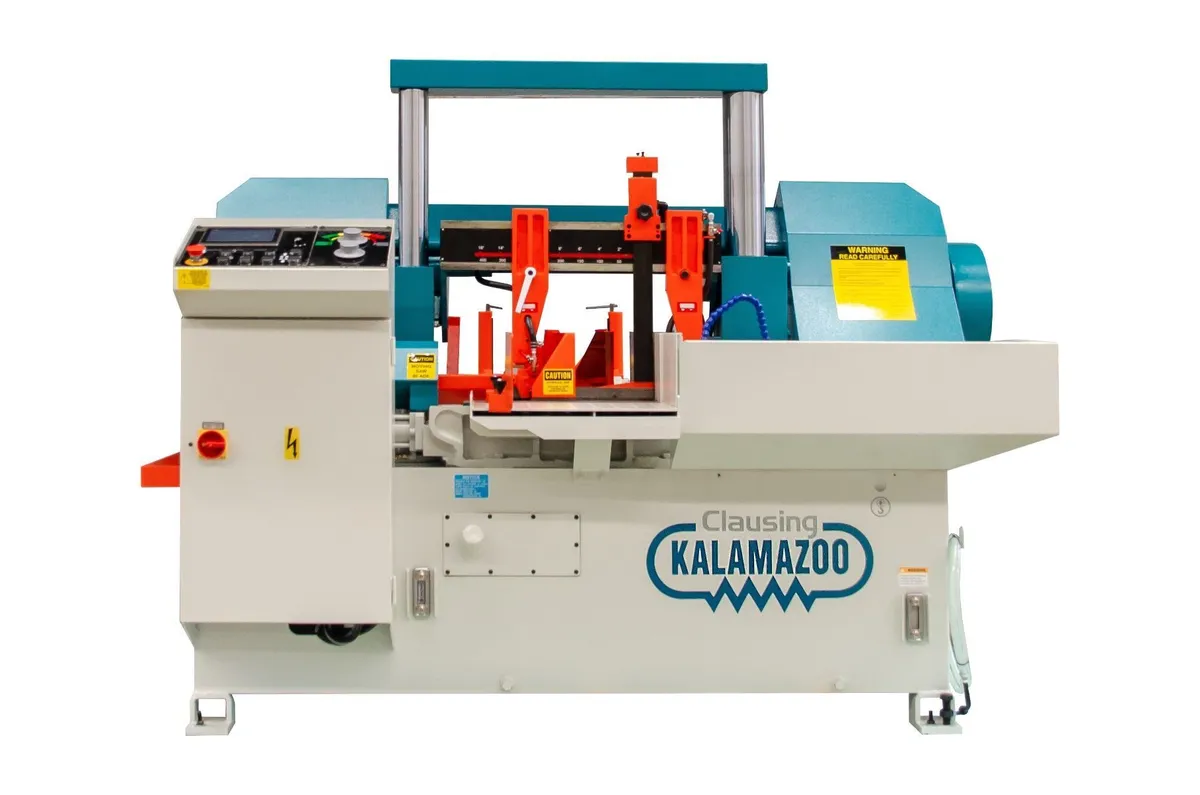

H1315NC - Clausing Kalamazoo Twin Column Automatic Bandsaw 15” x 12.6” Max Rectangular Capacity, 12.6” Round Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Twin Column Automatic Bandsaw 15” x 12.6” Max Rectangular Capacity, 12.6” Round Capacity, 49 to 262 SFPM Blade Speed, 5 Hp Drive Motor, 230 volts 3 Phase
Features and Benefits:
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in fully automatic operation. Voltage specific model, at either 230 or 460, may require a transformer or special order.A powerful drive motor provides the power, and the Smart NC-100 technology programmable up to 100 different jobs.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Inverter controlled infinitely variable speed
Maximum Capacity Round (inch) 12.6
Maximum Capacity Rectangle (inch) 15 x 12.6
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) N/A
Blade Size 1.25” x .042” x 166.9”
Blade Speeds (SFPM) 49-262
Blade Guide Type Carbide
Motor Horsepower 5
Inverter controlled infinitely variable speed
5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
Automatic shutoff after preset number of cuts or when out of stock
Precision feed pressure & feed rate valves
Automatic hydraulic blade tensioning
Easy recall and execution of stored programs
Hydraulic shuttle vice assembly
Hydraulic front and rear vises
Blade slippage or breakage detection
Discharge table with built-in coolant return
Automatic height setting feature
Cast iron vises with replaceable hardened wear plates
2 Year limited warranty
