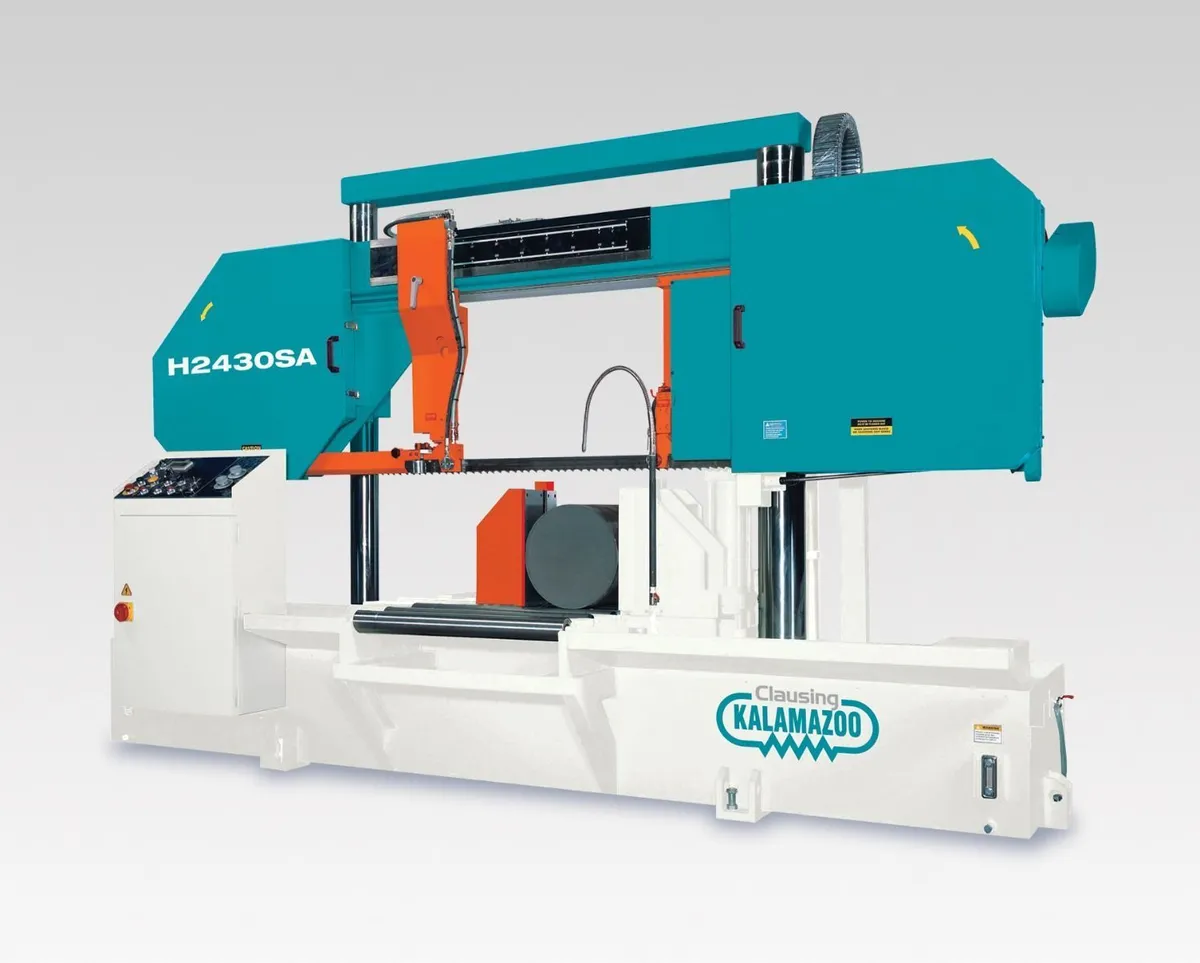

H2430SA - Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw 24.4” x 30” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Double Column Semi-automatic Horizontal Bandsaw 24.4” x 30” Max Rectangular Capacity, 24.4” Round Capacity, 66 to 328 SFPM Blade Speed, 10 Hp drive motor, 230 volts 3 Phase
Features and Benefits:
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at 230 volts, other voltages may require a transformer or special order.Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Drive Type Heavy duty inverter blade drive system
Maximum Capacity Round (inch) 24.4
Maximum Capacity Rectangle (inch) 24.4 x 30
Voltage 230
Phase 3
Coolant System Yes
Angular Cuts at 45 Degrees (inch) N/A
Blade Size 2” x .06” x 283”
Blade Speeds (SFPM) 66-328
Blade Guide Type Carbide
Motor Horsepower 10
Heavy duty inverter blade drive system
Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
Blade “clip” device for easy blade change
Precision feed pressure & feed rate valves system
Automatic hydraulic blade tensioning device
Hydraulically powered in-feed lift roller for forward and backward feeding
Specially designed gearbox for high lateral pressure
Proximity switch for sensing blade slippage or breakage
Discharge table with built-in coolant return
Ergonomically located independent control station
Full stroke ductile cast iron split vise
“Last cut” or “keep on” selector
2 Year limited warranty
