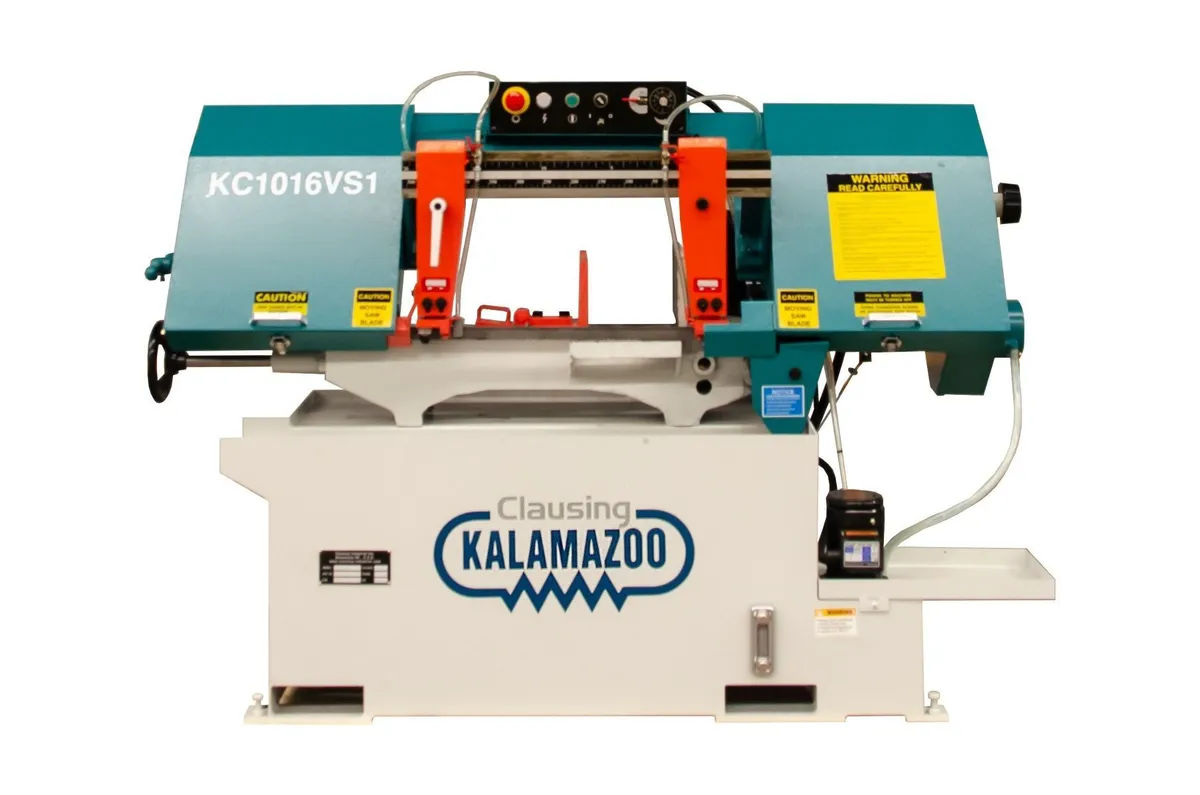

KC1016VS1 - Clausing Kalamazoo Manual Horizontal Bandsaw, 10.0” x 16.0” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Manual Horizontal Bandsaw, 10.0” x 16.0” Max Rectangular Capacity, 10” Round, Heave Pulley Drive, SPM 50-295 Blade Speed, 1-1/2 Hp drive motor, 110/220 Volts 1 Phase
Features and Benefits:
Manual Saws comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level.Valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.Single Phase power refers to a two wire Alternating Current (AC) power circuit. Typically there is one power wire and one neutral wire.
Drive Type Variable Sheve Pulley
Maximum Capacity Round (inch) 10
Maximum Capacity Rectangle (inch) 9 x 14.5
Voltage 110/220
Phase 1
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 9 x 9
Blade Size 1” x .035” x 11’
Blade Speeds (SFPM) 50-295 FPM
Blade Guide Type Carbide
Motor Horsepower 1 ½
Heavy-duty hydraulic cylinder with precision ground hinge support
Cast iron quick acting 0º - 45º vise with manual leadscrew clamping system
Simplified control switches mounted on saw head
Secure clamping via dependable manual lead screw system
Carbide blade guides with roller bearings
Infinitely Variable Speed Drive
Down feed rate and cutting pressure control via hydraulic down feed valve
Pan shaped base with built-in coolant and hydraulic system
Two additional bearings to support blade from the top
Recirculating coolant system with application through both guides
Anti-slip hand wheel
2 Year limited warranty
