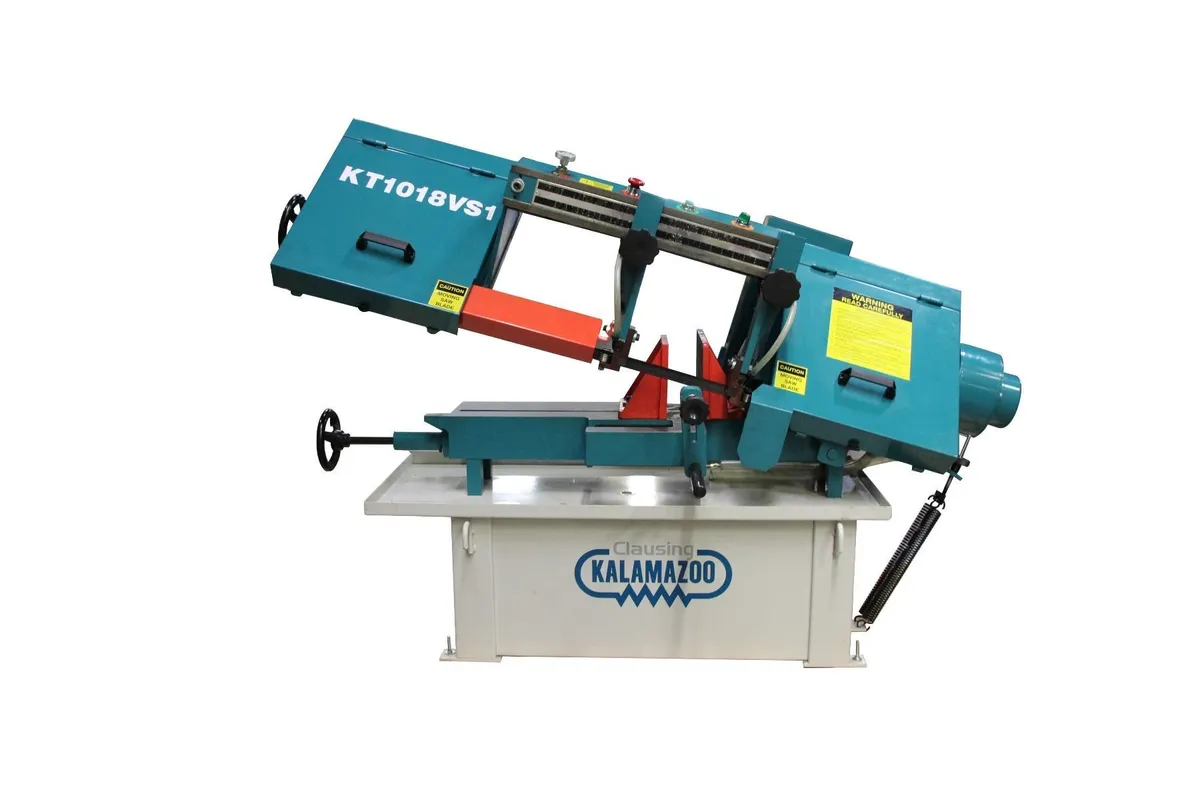

KT1018VS1 - Clausing Kalamazoo Manual Horizontal Bandsaw 10.0” x 16.0” / 18” x 6” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Clausing Kalamazoo Manual Horizontal Bandsaw 10.0” x 16.0” / 18” x 6” Max Rectangular Capacity, 10” Round, Variable Speed Sheave Pulley Drive, SFPM 69-321 Blade Speed, 2Hp drive motor, 110/220 Volts, 1 Phase
Features and Benefits:
Manual Saws comes with simplified control switches mounted on saw head as well as easy blade change with front access at waist level.Valve controlled hydraulic cylinder head feed can be adjusted for different types and sizes of material.Single Phase power refers to a two wire Alternating Current (AC) power circuit. Typically there is one power wire and one neutral wire.
Drive Type Variable Sheave Pulley Drive
Maximum Capacity Round (inch) 10
Maximum Capacity Rectangle (inch) 18 x 6 or 10 x 16
Voltage 110/220
Phase 1
Coolant System Yes
Angular Cuts at 45 Degrees (inch) 8 x 6 or 4 x 9 or 3 x 10
Blade Size 1” x .035” x 11’ 4-1/2”
Blade Speeds (Variable Speed) 69-321 FPM
Blade Guide Type Carbide
Motor Horsepower 2
2 hp drive motor with magnetic starter and overload protection
Cast iron quick acting 0º - 45º vise with manual leadscrew clamping system
Quick and simple speed change
Secure clamping via dependable manual lead screw system
Carbide blade guides with roller bearings
Infinitely Variable Speed Drive
Down feed rate and cutting pressure control via hydraulic down feed valve
Pan shaped base with built-in coolant and hydraulic system
Recirculating coolant system with application through both guides
Anti-slip hand wheel
2 Year limited warranty
