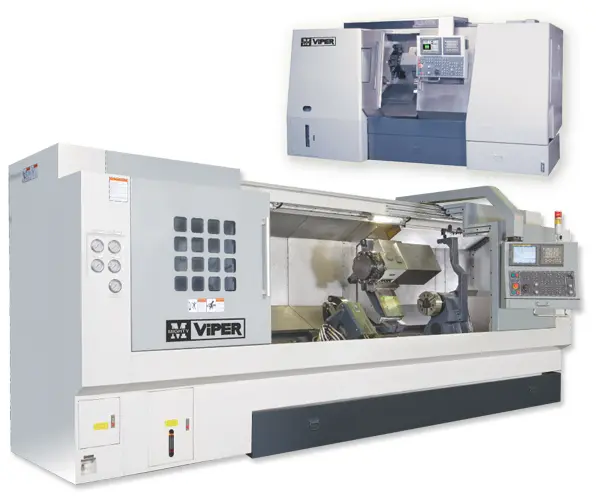

New MIGHTY VIPER VT-2100YM | CNC Lathes
Have one to sell?
ConditionNew
New
2100~3300YMS/YM VT-Series. Turret is seated on a cross travel (X-axis) 30° compound Y-slide. Provides either single or two axis travel.
Swing Over Z-Cover 25.6 (650)
Max. Turning Diameter 12.6 (320)
Swing Over Cross Slide 15 (380)
Distance Between Centers 19.8 / 39.4 (503 / 1000)
Slideway Slant Angle 30°+30°
X-Axis Travel 6.3+4.7 (160 + 120)
Y-Axis Travel ±2.0 (±50)
Z-Axis Travel 43.3 (1100)
W-Axis Travel 43.3 / 33.5 (1100 / 850)
Spindle Nose Type A2-6/A2-8/A2-11
Main Spindle thru Bar Capacity 2.0 ~ 3.5 (51~90)
Main Spindle Motor 25/35 hp
Units = inch(mm) *Optional accessory **30 min. rating
