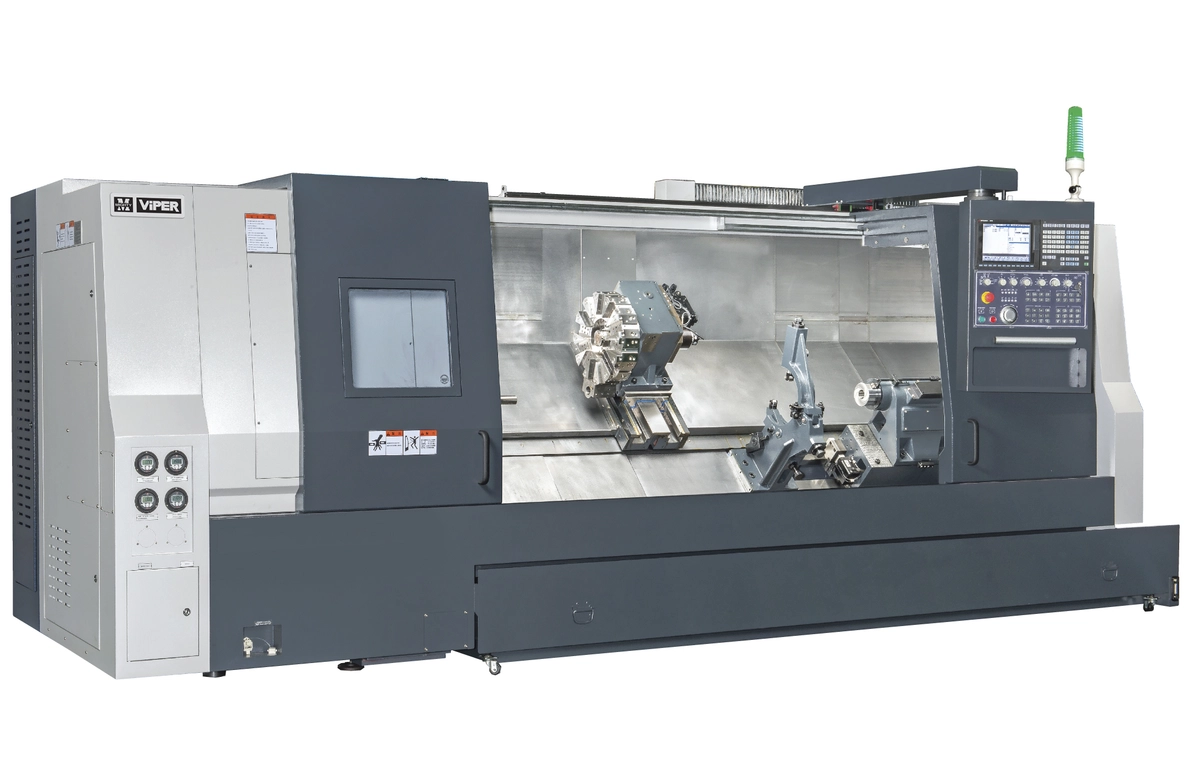

New MIGHTY VIPER VT-36CL | CNC Lathes
Have one to sell?
ConditionNew
New
36B~36CL VT-Series provides a wide boring diameter, up to 7-inches.
Rigid bed structure available up to 120-inches long.
Swing Over Bed 31.5 (800)
Turning Diameter Max. 24.8 (630)
Turning Length Max. 37~116 (950~2950)
X-Travel 12+1.18 (320+30)
Z-Travel 39 ~117 (990~2990)
Spindle Nose A2-11 / A2-15
Thru Bar Capacity 4.5 / 6.3 (115 /160)
Spindle Thru Hole 5.16 / 7.28 (131/185)
Spindle Speed Range*** 2100/1400rpm
Spindle Motor** 35 / 50* hp
Tool Number 12
Units = inch(mm) *Optional accessory **30 min. rating ***The actual spindle speed will be limited to chuck manufacturer specifications.
