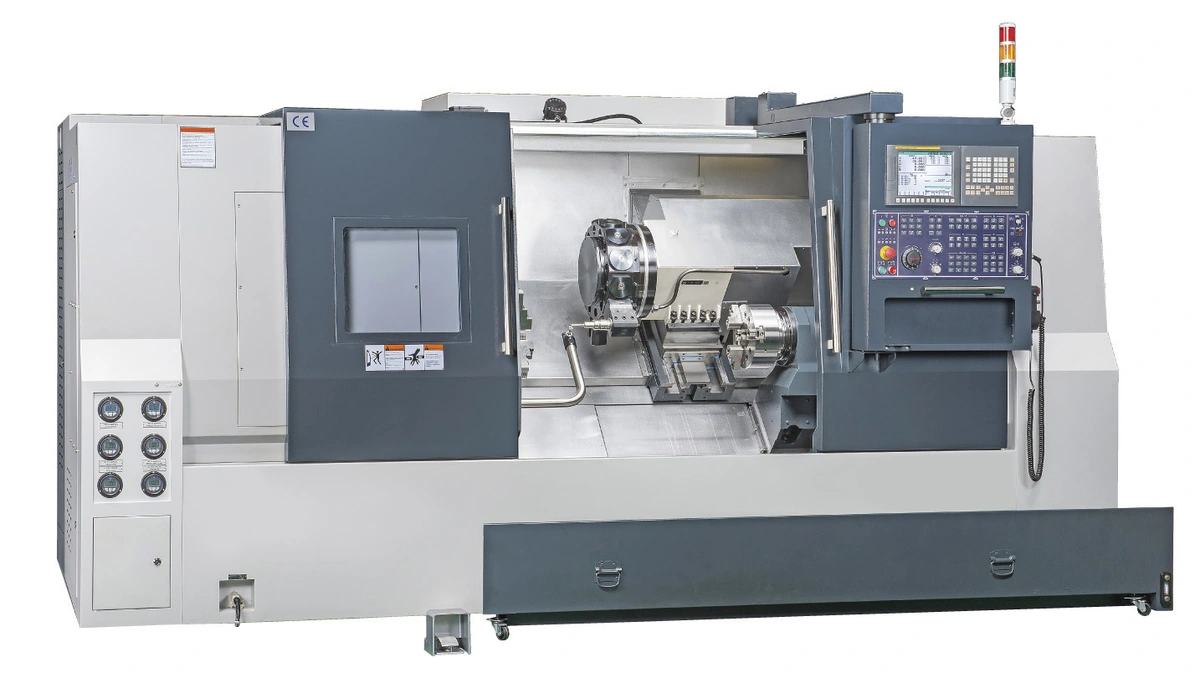

New MIGHTY VIPER VT-33 | CNC Lathes
Have one to sell?
ConditionNew
New
VT-28 to VT-33 Turning Centers perform extraordinary metal removal and provide
excellent surface finishes. Live turret and a programmable sub-spindle.
Swing Over Bed 26.8 (680)
Turning Diameter Max. 18.9 (480)
Turning Length Max. 21.7~80.7 (550 ~ 2050)
X-Travel 9.4+1.18 (240+30)
Z-Travel 23.2~82.3 (590~2090)
Thru Bar Capacity 4.5 (115)
Boring Bar Diameter Max. 1.6 / 3.0 (40/76)
Spindle Thru Hole 5.2(131)
Spindle Nose A2-11
Spindle Speed Range 2400 rpm
Spindle Motor** 35 / 50* hp
Tool Number 12
Units = inch(mm) *Optional accessory **30 min. rating
