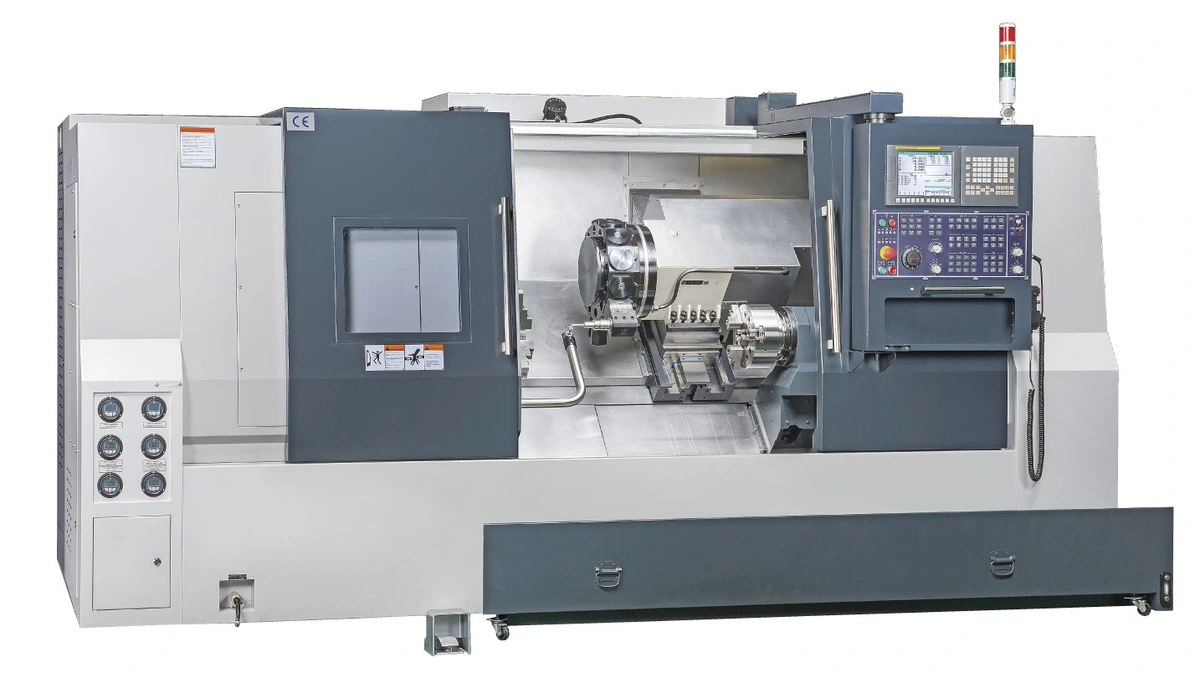

New MIGHTY VIPER VT-27 | CNC Lathes
Have one to sell?
ConditionNew
New
VT-27 has a 2-step gear spindle that provides powerful torque. Variable speed range of 1~600 / 600~3500 rpm. Spindle bar capacity is 3.03-inches. Dynamic turret with C-axis (option).
Swing Over Z-Cover 26.8 (680)
Max. Turning Diameter 18.9 (480)
Max. Turning Length 21.7~80.7 (550~2050)
X-Travel 9.4 +1.18 (240+30)
Z-Travel 23.2 ~ 82.3 (590~2090)
Spindle Nose A2-8
Spindle Thru Hole 3.43 (87)
Bar Capacity 3.03 (77)
Spindle Motor** 35/50* hp
Spindle Speed Range 1~600 / 600~3500 rpm
Units = inch(mm) *Optional accessory **30 min. rating
