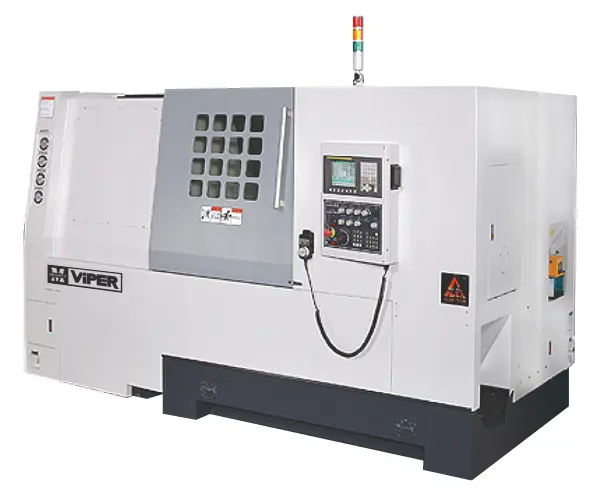

New MIGHTY VIPER VT-21 | CNC Lathes

Have one to sell?
(714) 572-6830 - AZ / Nevada
karl@tornquist.com
ConditionNew
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
MIGHTY VIPER
Model:
VT-21
Condition:
Build To Order
Status:
For Sale

Description

VT-21 / VT-23. Easier set-up for shorter more productive cycle times. Features a 24 inch swing. Fast rapid rates of 787 ipm and 945 ipm.

Swing24"609.6 mm
Machining Length24"609.6 mm
Chuck Size8"203.2 mm
Bar Capacity2"50.8 mm
Power20 hp14.9 kW
Max RPM5,000 RPM5,000 RPM
Turning Dia15.35"389.89 mm

Swing Over Bed 24.4 (620)
Max. Turning Diameter 15.35 (390)
Max. Turning Length 24  (610)
X-Travel 7.3+1.6  (185+40)
Z-Travel 24.4  (620)
Spindle Nose Type A2-6
Spindle Thru Hole 2.4 (61)
Bar Capacity 2.0 (51)
Spindle Speed Range 5,000 rpm
Spindle Drive Motor** 20 / 35* hp
Tool Number 12
Units = inch(mm) *Optional accessory **30 min. rating
