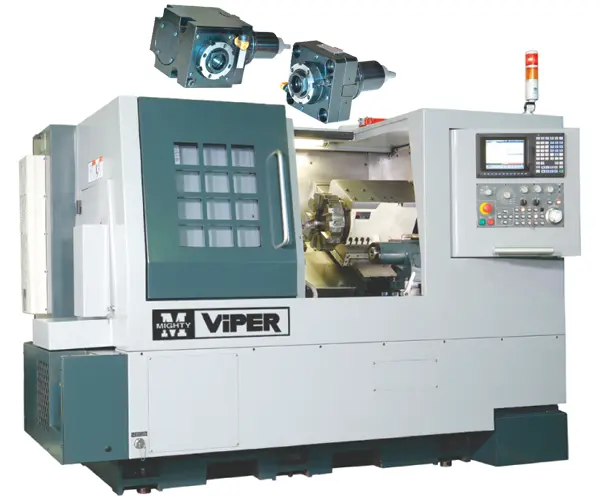

New MIGHTY VIPER VT-15L | CNC Lathes

Have one to sell?
(714) 572-6830 - AZ / Nevada
karl@tornquist.com
ConditionNew
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
MIGHTY VIPER
Model:
VT-15L
Condition:
Build To Order
Status:
For Sale

Description

Viper VT15XL to VT-17XL can handle a wide-range of turning, milling or center work. Features a 12-tool turret with a tool change speed of 0.5 seconds.

Swing15"381 mm
Machining Length14.6"370.84 mm
Bar Capacity1.7"43.18 mm
Power15 hp11.2 kW
Max RPM6,000 RPM6,000 RPM
Turning Dia11.2"284.48 mm

Swing Over Z Way 18.9 (480)
Turning Diameter Max. 11.2 (280)
Turning Length Max. 14.6 (370)
X-Travel 6.3+0.6 (160+15)
Z-Travel 18.5 (470)
Spindle Nose Type A2-5
Spindle Thru Hole 2.0 (51)
Bar Capacity 1.7 (43)
Spindle Speed Range 6,000 rpm
Spindle Drive Motor** 15 / 20* hp
Tool Number 10 (L) / 12 (LM)*
Units = inch(mm) *Optional accessory **30 min. rating
